Keep Track G70 With Bluetooth®

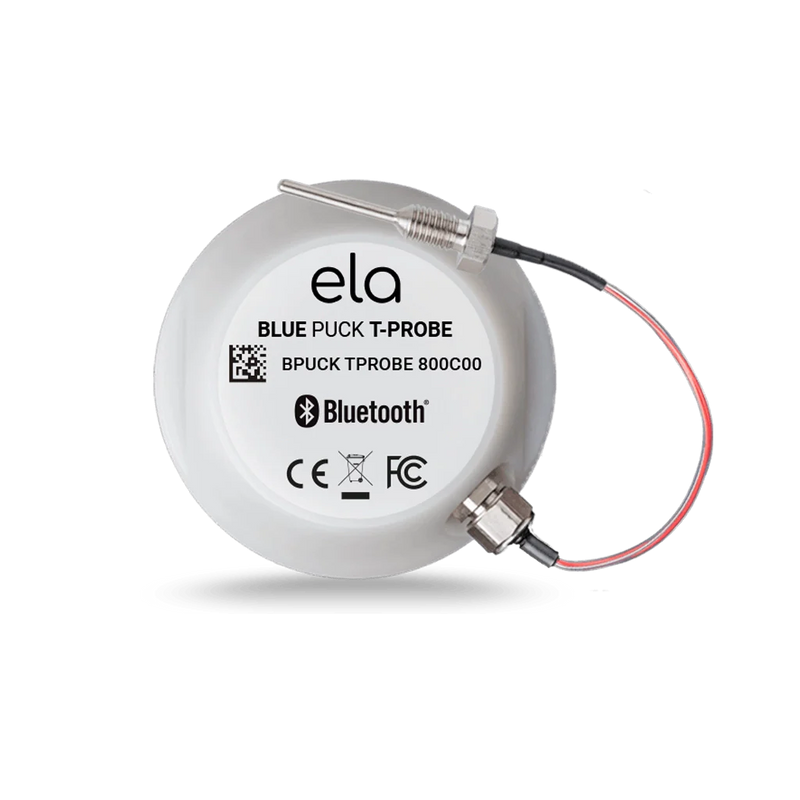

Bluetooth sensors for temperature monitoring with GPS location

  • Refrigerated Transport Temperature Monitoring

    Cost-effective monitoring and Compliance for Refrigerated Vehicles and Trailers. Our fleet management software includes Integrated Bluetooth sensors for remote temperature control.

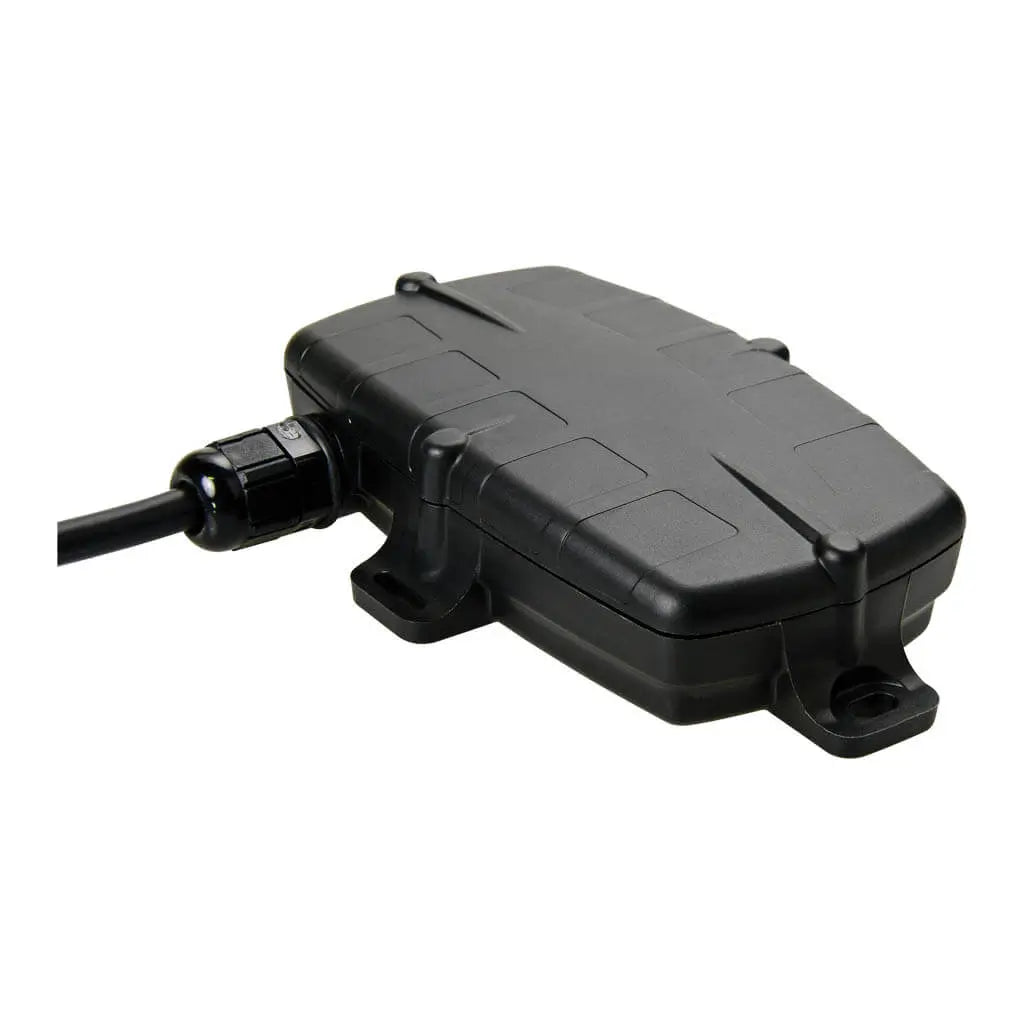

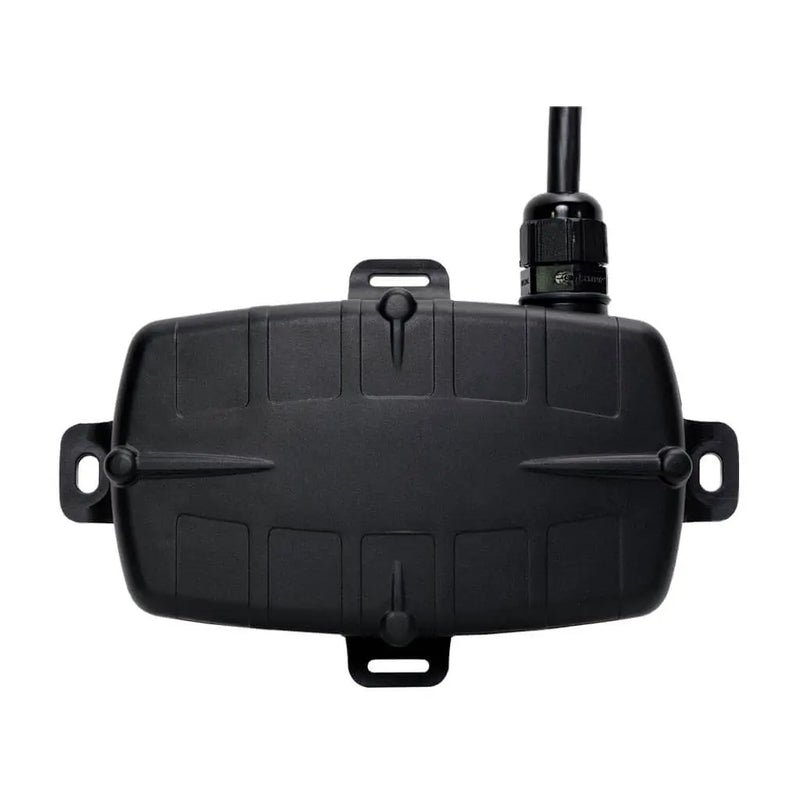

    The Keep Track G70 Bluetooth® GPS Tracker is a rugged, compact, waterproof tracking device now available as a Bluetooth® Gateway to connect temperature sensors, beacons, and tags now with Bluetooth driver ID available within the Keep Track GPS Telematics App, available on Android and IPhone.

    The integrated 1100mAh battery backup and cellular antennas are located within the rugged nylon-glass housing, allowing users to track and monitor any asset in the most demanding conditions.
    This Bluetooth-enabled vehicle tracker can keep track of odometer and run-hour monitoring and even detect high G-force events, such as collisions.
    Installation is a breeze. Hide your GPS tracker anywhere inside your refrigerated truck, trailer, or equipment and effortlessly track it 24/7. The 1100mAh internal backup battery provides alerts and tracking operations even when external power has been removed. The internal battery keeps the G70 tracking device operational during power loss for up to 6 hours at full use or up to 3 weeks on standby.


    FEATURES

    • High-precision GNSS (GPS/GLONASS/Galileo) wired tracking device
    • Hardwired to permanent power for real-time tracking
    • Ultra-rugged and weatherproof IP67 nylon glass housing
    • 1100mAh Internal Backup Battery in case of power loss or tampering
    • 1 x Ignition Digital Input, 3 x Digital Inputs, 1 x Analogue Input, 1 x switched Ground Digital Output
    • Internal Backup Backupy in case of loss of power or tampering
    • Configure I Button® for Driver ID
    • Run hour monitoring, accident and rollover detection, speeding, harsh braking, and more.
    • Cellular 4G LTE-M / NB-IoT
    • Dimensions: 125 x 80 x 25 mm (4.92 x 3.15 x 0.98”)

    Live Temperature Monitoring With GPS Locations


    Applications

    • Bluetooth Gateway
    • Vehicle and Fleet Tracking
    • Refrigerator Temperature Monitoring Solutions
    • Rental Equipment
    • Cargo Temperature Control
    • Wireless Temperature Monitoring
    • Engine run-hour monitoring
    • Trailer Temperature Monitoring
    • Run/Engine Hours or Odometer Tracking
    • Bluetooth Driver ID
    • All weather applications require IP67-rated housing.
    • Minimise Temperature-related Spoilage Costs
    • Rugged, weatherproof housing
    • Refrigerated Transport Temperature Monitoring
    • Easy to install and easy to conceal.
    • Variety of input and outputs
    • Great for equipment location and run hours


    Download The Keep Track GPS Telematics App for IOS or Android!

    gps tracker app for caravans on the app store     keep track telematics gps tracker for car App on Google Play


  • Keep Track G70 Bluetooth® GPS Tracker Specifications


    CONNECTIVITY

    Cellular Module Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands (supports roaming across networks – roaming SIM required).
    Supported LTE bands:
    LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66
    NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
    Bluetooth® Gateway Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors
    SIM Size & Access Internal Micro 3FF SIM

    Location

    GNSS Module u-blox MIA-M10Q
    Constellations Concurrent GPS/QZSS, GLONASS, Galileo, BeiDou
    Tracking Sensitivity -167dBm GPS industry-leading tracking performance
    *Location Accuracy 1.5m CEP
    GNSS Assistance GNSS almanac and ephemeris data for greater sensitivity and position accuracy
    Low Noise Amplifier GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA), allowing operation where other units fail
    Cell Tower Location Cell tower location fallback for positioning when GPS can’t get a fix

    *Positioning accuracy specifications are provided by the GNSS supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.

    Power

    Input Voltage 8 - 33V DC (max)
    High-Performance Automotive Power Supply Stringent power ‘load dump” tests are conducted to ensure operation in the harshest automotive electrical systems. Built-in self-resetting fuse makes installation simple and safe.
    Operating Current ~25 - 50mA when moving
    ~100 - 250mA battery charging
    Intelligent Power Management The device enters sleep mode when a vehicle is inactive to prevent battery drain
    Sleep Current <1mA (no peripherals supplied and battery fully charged).<
    Backup Battery 3.7V 1100mAh LiPo internal backup battery pack.

    Mechanics/Design

    Dimensions 126 x 80 x 27 mm
    Housing
    IP/IK Rating The device's ultra-rugged, waterproof IP68 and IK08-rated housing ensures it can withstand impact, fine dust, and brief submersion.
    Installation 10 wire harness
    1m length
    Temperature Range Operating: -30°C to +60°C (connected to external power)
    At < 0°C and > +40°C the internal backup battery will not be charged as a safety
    precaution due to the dangers associated with charging batteries at extreme temperatures.
    Recommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
    Cellular Antenna Internal
    GPS Antenna Internal
    3-Axis Accelerometer 3-Axis Accelerometer to detect movement, high G-force events, and more.
    Diagnostic LED
    Flash Memory Store records if the device is out of cellular coverage.
    Onboard Speed and Heading The device continuously monitors speed and heading, allowing for over-speed alerts as well as updates on speed and heading changes.
    Onboard Temperature Provides ambient temperature but may not be suitable for precise temperature logging purposes.

    Interfaces

    Analog Input 1 x Analog Input 0-40V
    Digital Inputs 3* x Digital Inputs with configurable pull-up/down
    0-48V DC input range On/Off thresholds:
    Pull-up enabled: low at 0.4V, high at 1.9V
    Pull-down enabled: low at 0.8V, high at 2.2V. Can be used for pulse counting
    *Digital Input 3 pin shared with Driver ID. Cannot be used in conjunction with Wiegand or TTL readers.
    Digital Outputs 1 x Switched Ground Digital Output – 2A max
    Easily wired up to switch external lights, relays, buzzers, etc. Can be used to immobilize a vehicle.
    1 x dedicated ignition Digital Input 0-48V DC
    2.2V on/off threshold
    May be used as a digital input if not required.
    Switched Power Out 3-5V out
    Max current 500mA
    Wiegand Wiegand Interface enables easy integration with a variety of RFID card types and readers. Existing employee access badges or IDs can be used with a Wiegand reader for driver ID, permission-based actions, and theft prevention, eliminating the hassle of issuing additional ID cards or fobs.
    1-Wire® or iButton® 1-Wire® or iButton® can be used to read Driver ID tags. Readers are available to suit multiple card formats.

    Smarts

    Accident & Rollover Detection Configure accident and rollover alerts triggered by extreme changes in the velocity and orientation of the vehicle or equipment. Up to 2 hours of second-by-second ‘black box’ data is stored to provide critical accident reconstruction data.
    Flexible Input Monitoring Interface with a range of devices and switches for seatbelt detection, duress and panic buttons, lights, in-cab warning buzzers, and more.
    Driver ID Options Bluetooth® RFID reader, iButton®, or Wiegand interface for Driver ID, access control, and log booking
    Driver Safety & Behavior Monitor speeding, harsh acceleration, braking, cornering, idling, and more to improve safety and prevent unnecessary wear on vehicles. Use the buzzer to alert drivers of these actions.
    GPS Jamming Detection GPS jamming or interference can be detected and alerted on.
    In-Vehicle Alerts Can be wired up to external buzzers or lights for in-vehicle alerts.
    Onboard Geofencing Geofences can be downloaded directly to the device for enhanced location-based actions and alerts.
    Preventative Maintenance Set reminders based on distance travelled and run hours to reduce maintenance and repair costs.
    Real-Time Tracking Device remains continuously connected while on the move for real-time asset tracking.
    Remote Immobilisation Digital outputs can be connected to a relay to enable remote immobilisation of vehicles and equipment for theft, abuse, or unauthorised usage.
    Run Hour Monitoring Calculate run hours and distance travelled (odometer) to understand and optimize asset utilisation.
    Tamper Alerts Instant alert if the device is disconnected from its power source.
    Theft Recovery Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.

    Security Data

    Data Security Military-level AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

    Manufacturer's Warranty

    Manufacturer’s Warranty Two-year manufacturer’s warranty.
