ELA Blue Puck T

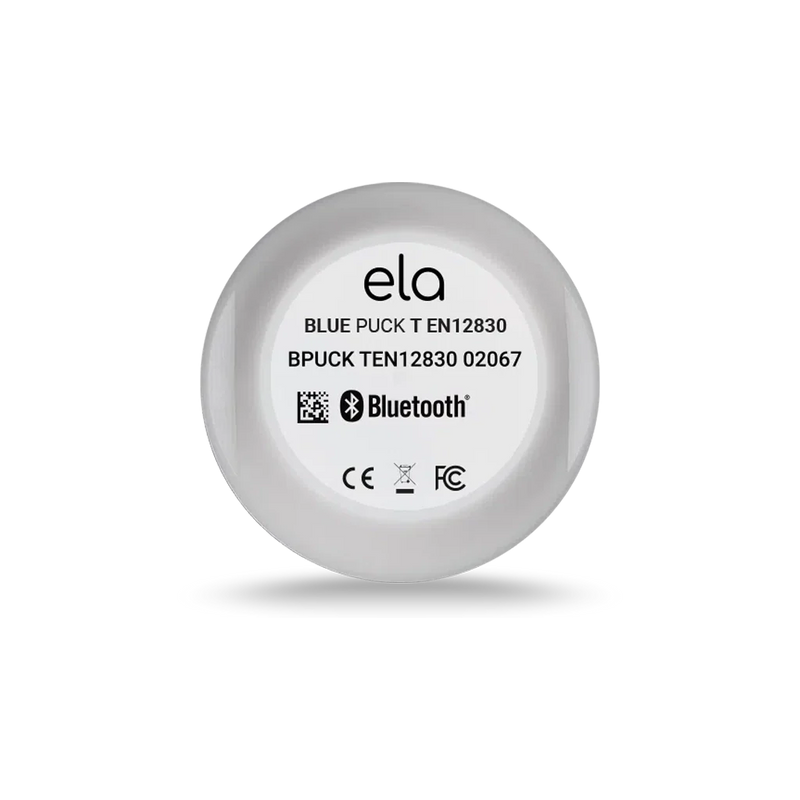

  • Blue PUCK T EN12830

     Bluetooth temperature sensor

    Equipped with Bluetooth Low Energy technology, the BLUE PUCK T EN12830 temperature sensor is waterproof and robust. This Bluetooth temperature sensor is 100% autonomous and adapts to industrial environments to respond to cold chain traceability issues.

    Bluetooth temperature sensor for cold chain traceability. Withstands temperatures from -40ºC to 85ºC, transmission ranges up to 500 meters (open field) Resolution of 0.0625ºC, IP68.

    Remote temperature monitoring
    Supervise and secure the transport of temperature-sensitive goods with Bluetooth wireless temperature sensors. Transporters must equip themselves with a temperature control solution to improve the cold chain's traceability and ensure compliance with current regulations. Discover how and why ELA Innovation's Bluetooth temperature sensors meet these challenges.

  • Specifications

    Specifications Value
    Frequency 2,4 GHz - Bluetooth Low Energy 4.0/4.2
    Output power Up to +4 dBm (configurable
    Range Up to 500 meters open field (+4dBm)
    Transmission period Two advertising periods can be configured (value between 0,1 and 86400 seconds).
    Transition from one to another according to configurable sensor threshold.
    Radio frame format ELA ID (15 bytes identifier)
    ELA T (15 bytes identifier + 2 bytes Temperature (in 0.01°C)
    Parameters and configuration Interface/protocol: NFC (Type 2) or Bluetooth-connected mode
    Connected mode Download of 4,000 time-stamped temperature values, Battery level command
    Sensors performance Range: -40 to +85 °C
    Resolution: 0,0625 °C
    Accuracy : ±0.5°C maximum (-30° to +30°C) ±1°C maximum (-40°C to -30°C & +30°C to +85°C)
    Calibration: Configurable 3-point calibration coefficients (Polynomial 2nd degree)
    Power supply 3 VDC - Internal lithium battery
    Battery life Up to 18 years* (0 dBm, 10 sec advertising period)
    Up to 10 years* (0 dBm, 3 sec advertising period)
    Battery level Low battery warning in advertising frames (<15%)
    Battery voltage in scan response frames (configurable)
    Dimensions Ø 57 mm base - Thickness 20 mm
    Weight 41 g
    Materials DELRIN (POM C) Compatible with food products (90/128/EEC)
    Waterproof grade IP 68 & IP69K
    Operating temperature -40°C to +85°C
    Tag support Holder + double-sided adhesive:
    Holder only: PUCK HOLDER (ACIOM117B)
    Double-sided adhesive only:
    PUCK STICKER (ACIOM188) 3M PT1100 - Ø 55mm – Thickness: 1,1mm
