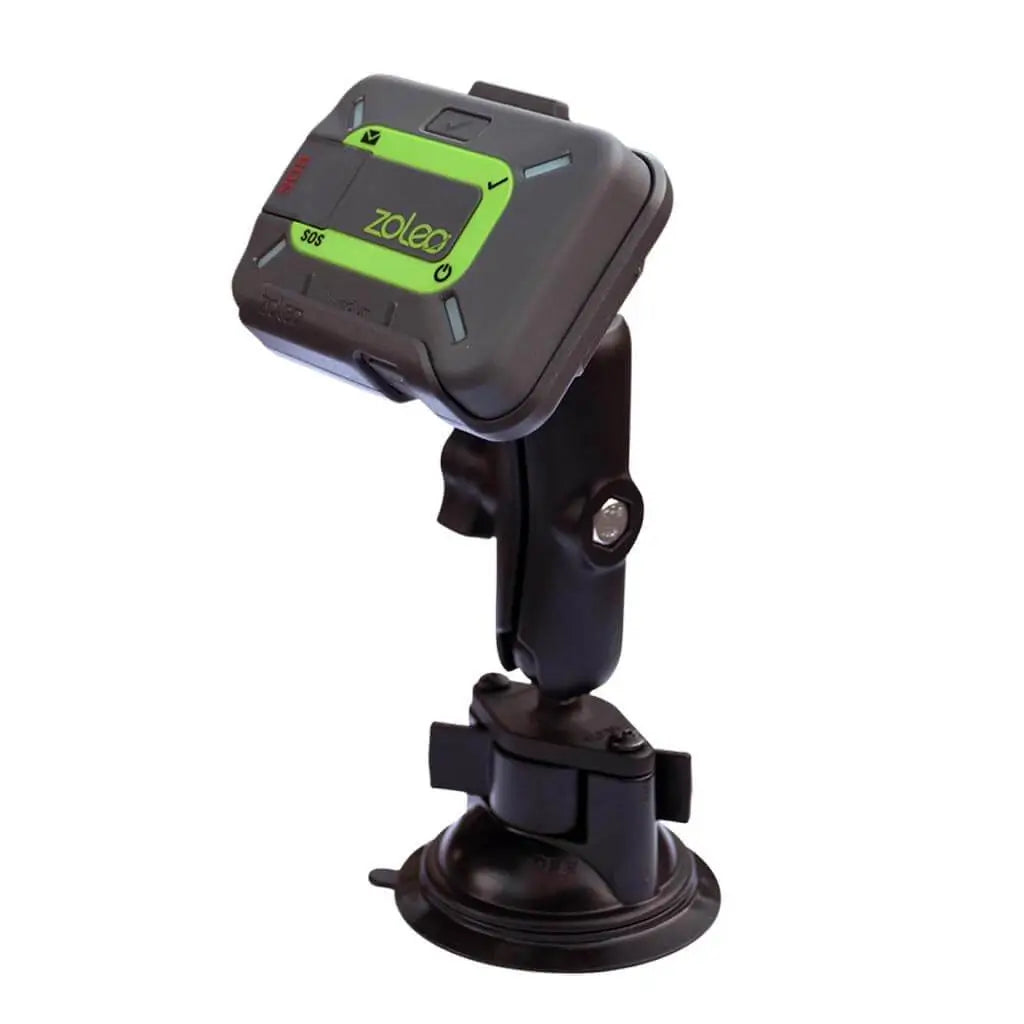

Ideal for securing the ZOLEO device on the windshield of a vehicle or vessel, or any window, and keeping it charged. This kit includes the complete Cradle Kit plus a USB car charger, RAM® Twist-Lock™ Suction Cup Mount for a strong hold on glass and non-porous plastic surfaces. The double socket arm makes it easy to adjust to the desired look-angle.

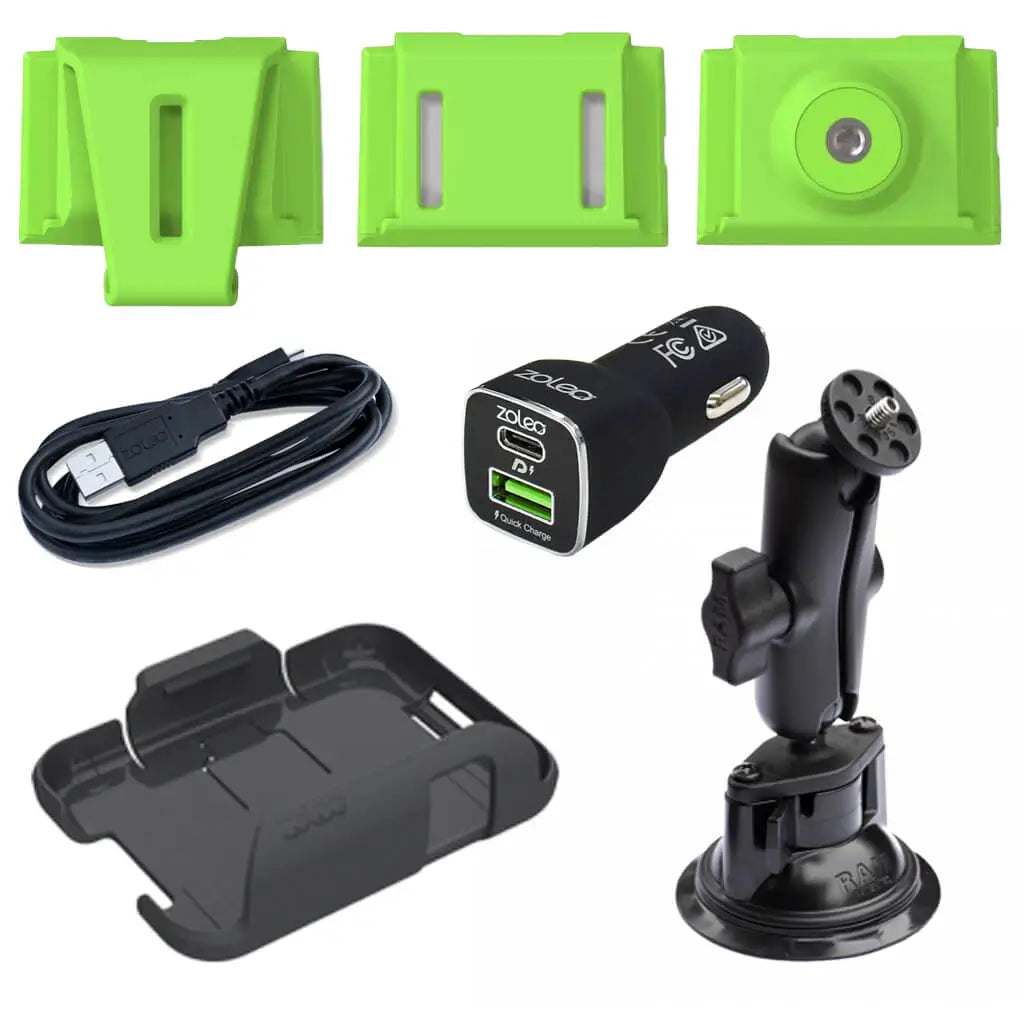

The Universal Mount Kit includes:

DC car charger
USB cable
Cradle
Camera mount
Strap infill
Belt clip
RAM® Twist-Lock™ Suction Cup mount
Installation guide

Additional Specs

RAM® Mount Components

RAM Twist-Lock Suction Cup Base with Ball

Suction Cup Dimension: 8.38 cm (3.3 in) in diameter
Weight: 118 g (4.16 oz)
Ball: B Size 2.54 cm (1 in) rubber ball

RAM Double Socket Arm

Dimensions: 9.47 cm (3.73 in)
Weight: 140.6 g (4.96 oz)

RAM Ball Adapter with ¼"-20 Threaded Stud
for Action Cameras

Dimension: 63.5 mm (2.5 in) in diameter
Weight: 72.57 g (2.56 oz)
Stud: ¼”-20 threaded steel stud
Ball: B Size 2.54 cm (1 in) rubber ball

DC Car Charger

Single USB port for use with the included USB to Micro-USB cable
Input Voltage: 12-24 V
Output Voltage: 5 V
Max Current (A): 2.5 A

USB Cable

1.2 m (3.9 ft) (USB to Micro-USB)

ZOLEO Cradle Kit Components (included)

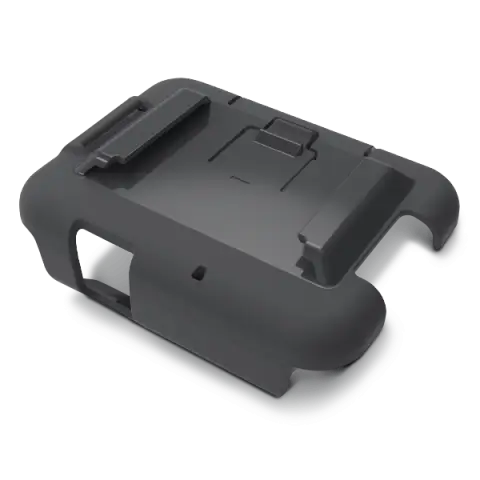

Main Cradle

Secures and protects your ZOLEO device and includes a locking tab to enable easy installation or removal of all included clips/inserts.

Dimension: 74.5 x 95.0 x 27.8 mm (2.93 x 3.74 x 1.09 in)
Weight: 3.0 g (0.10 oz)
Colour: Grey

Belt Clip Insert

Secures your ZOLEO device to be worn on a belt.

Weight: 2.0 g (0.07 oz)
Colour: Green

Strap Mount Insert

Secures your ZOLEO device flat against a backpack or other installations using a strap or tether. Simply slip the strap through the insert.

Fits straps up to: 25 mm (1 in)
Weight: 1.0 g (0.03 oz)
Colour: Green

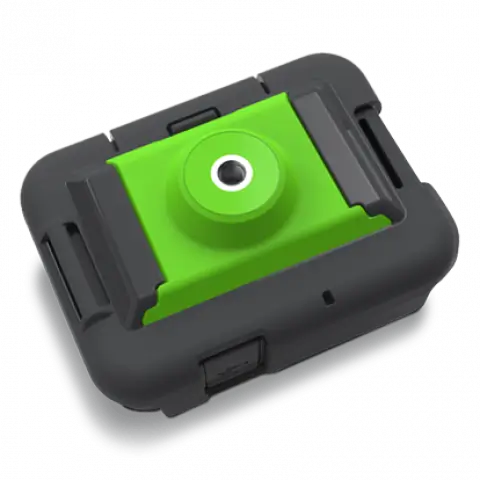

Camera Mount Insert

Secures your ZOLEO device to any universal camera mount. Ideal for use with other RAM mounts and other accessories with a camera mount.

Weight: 1.5 g (0.05 oz)
Thread Type: ¼"-20 UNC
Colour: Green
