Satellite Tracker SmartOne C

  • Satellite Asset Tracker Anti-Theft Device

    SmartOne C is a satellite-managed asset-ready tracker designed for the intelligent management of fixed and mobile assets.

    The SmartOne C is a practical solution for a multitude of options, including:

    • Up to 12 different reporting times
    • Interval or 24-hour operation mode
    • Alternate reporting schedules
    • Low battery message

    Use the SmartOne C to track intermediate bulk containers, vehicles, boats, and trailers, improving your assets' operating efficiency and security.

    The device can be line-powered, or the SmartOne C will automatically switch to battery backup in the absence or interruption of external power. When using line power, the user has maximum flexibility in messaging frequency, allowing for regular monitoring of asset location.

    The SmartOne C utilises motion sensors, comparative GPS positions, and custom-configured sensors to gather and transmit asset status information. Each SmartOne C is adjusted to track your assets' needs and provide intermediate and emergency alerts by email or text.

    Messaging

    Staff Tip: Your tracking device can only operate with a messaging plan. Keep Track offers different plans to suit your needs.

    STANDARD MESSAGING MODE

    In Standard Messaging Mode, the SmartOne C reports its GPS position at regular intervals programmed during the initial configuration process. Reporting intervals can be programmed in 1-minute intervals from 35 minutes up to 45 days, and messages will be transmitted regardless of whether the asset is moving or stationary.

    Alternatively, the device can be configured to send messages only when the asset is in motion, with messages transmitted as little as every 5 minutes.

    REDUCED MESSAGING MODE

    Reduced Messaging Mode reduces the cost of transmitting messages over the Globalstar satellite network by sending messages at a minimal message interval when the asset is stationary or in a defined area and transmitting at a higher message interval when the asset moves or changes locations.

    THEFT RECOVERY/GEOFENCING MODE

    The theft recovery mode allows you to configure the device to differentiate between authorised and unauthorised movements of an asset. While the asset remains in an authorised state, the SmartOne C will send out infrequent messages. Suppose the SmartOne C detects an unauthorised state, such as movement out of a predefined area. In that case, it can be programmed to send out high-frequency messages to enable the unauthorised movement to be monitored.

    GEOFENCING

    The SmartOne satellite asset tracker offers a geo-fencing feature. This feature enables you to predefine a set of geographic boundaries and receive email notifications when the device enters or exits the geo-fenced area.

    Features

    • Up to 12 different reporting times
    • Interval or 24-hour operation mode
    • Alternate reporting schedules
    • Low battery message
    • Quick installation: Use industrial adhesives, brackets, or screw mounts for installation
    • Operates on 5V external line power, 8-22V regulator cable, or (4) AAA Lithium Batteries
    • Automatic alerts: Change of location sensing sends alerts if an asset moves outside of the pre-determined range
    • Messaging reduction mode: Reduces satellite messaging if the asset remains in the exact location for a pre-determined period
    • Hardware on/off feature: Allows the unit to initiate GPS re-centering functionality
    • Satellite technology: Global LEO Satellite operation using the Globalstar Simplex Data Network

    Estimated Battery Life:

    • 01 Location  Per Day (2.5 years)
    • 02 locations Per Day (500 days)
    • 03 locations Per Day (400 days)
    • 06 Locations Per Day (200 Days)
    • 24 Locations Per Day  (80 Days)

    FAQ SmartOne C

    Is the SmartOne C Tracker waterproof?
    YES, The SmartOneC is IP68-rated.
    Is the monthly fee charged per unit?
    Yes Their is a monthly fee. Please see SmartOne Satellite Tracker Airtime. We also offer month-to-month plans; please get in touch with us for details. There is also a connection fee of $45.00 for activating the SmartOne C device and a reactivation fee every time you turn it back on.
    Does it have a low battery alert?
    Yes it dose have a low battery alert
    Can i hardwire the device to my Caravan, Truck or Trailer
    Yes you can buy the Combined Serial, 8-24V Dry Contact Input Cable, I/O Cable from Keep Track GPS
    Can the SmartOne C be programmed over the air?
    NO: The SmartOne C will require the device to be returned and reprogrammed. Please get in touch with us for details.
  • Specifications

    Specifications Value
    Model SMARTONE C
    Manufacturer GLOBALSTAR
    Type  GPS TRACKER
    Dimensions 6.86 x 8.26 x 2.54cm with brackets
    Weight 102g with 4 batteries and mounting hardware
    Operating Temperature -30 to 60°C NOTE: The unit shall remain operational over the -40 to 85°C range, though it may experience battery life and RF signal degradation.
    Line Power 5V DC or 8-22V DC with regulator cable
    Battery Type 4 AAA 1.5V lithium (provides 1.5+ years of life)
    Certifications ANATEL Certification for Brazil (pending)
    FCC CFR Parts 15 and 25
    Industry Canada
    CE Mark (European Certification)
    COFETEL (pending)
    Satellite Technology Global LEO Satellite operation using the Globalstar Simplex Data Network
  • Accessories

    • Combined Serial, 8-24V Dry Contact Input Cable, I/O Cable (Sold Separately)
    • Combined Serial, 5v LP, I/O Cable (Sold Separately)
    • USB Configuration Cable (Sold Separately)

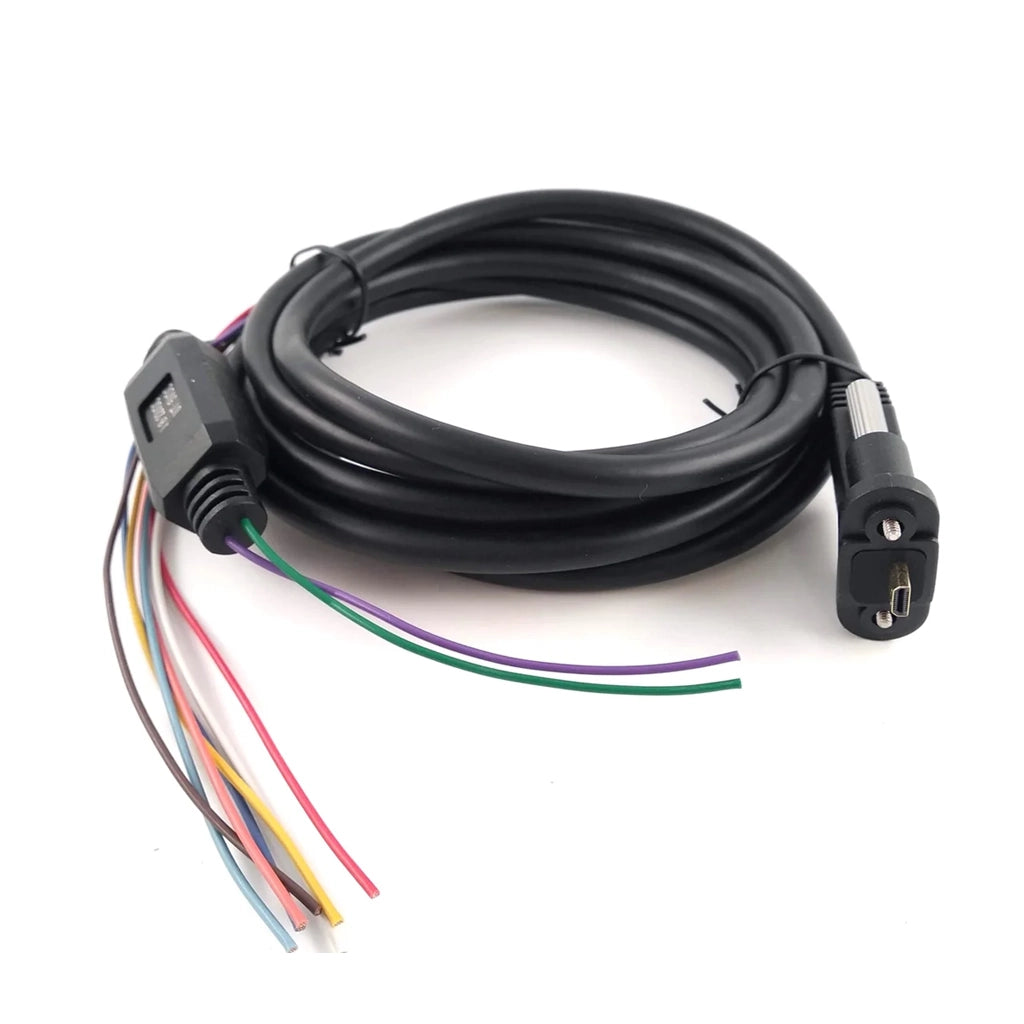

    An optional power cable allows you to hardwire the SmartOneC to any 12 VDC power source, like a vehicle, truck, or powered asset with 8–22 VDC. When used with this power cable, if power is ever lost, it will revert to the internal batteries as a backup power source.

  • Download the SmartOne C Data Sheet
