GPS Tracker for cars With Iridium Edge for Remote Locations
The Explorer is a compact 4G GPS vehicle tracking device with an range of inputs and out puts to cater for the most demanding applications. The stand out feature of the explorer is the ability to ad an Iridium Edge Module. This allows for the most flexible expansion options in the industry. The explorer's compact housing contains the GPS and cellular antennas. All of the functionality is exposed through a 24 wire connector, allowing for quick and simple installations. This includes ignition + 6 inputs, two outputs. The internal backup battery provides alerts and tracking operations even when external power is removed. It uses offline satellite aiding technology for faster acquisition and more accurate and reliable tracking in locations where other devices just give up.
Bluetooth Gateway 5.0
The G120 is now equipped with a Bluetooth v5 module, enabling it to act as a Bluetooth Gateway
Different applications include:
Low-cost Bluetooth tags, like the Guppy Bluetooth Tag can be fitted to low value assets. When a tag is in range of the G120, it will report to it, and the location of the tag can be estimated. All without need for a SIM or data plan
The G120 can be installed in a truck cab, and the SensorNode Bluetooth® in the cargo hold to provide wireless temperate or other input (like if a door is open or closed) monitoring.

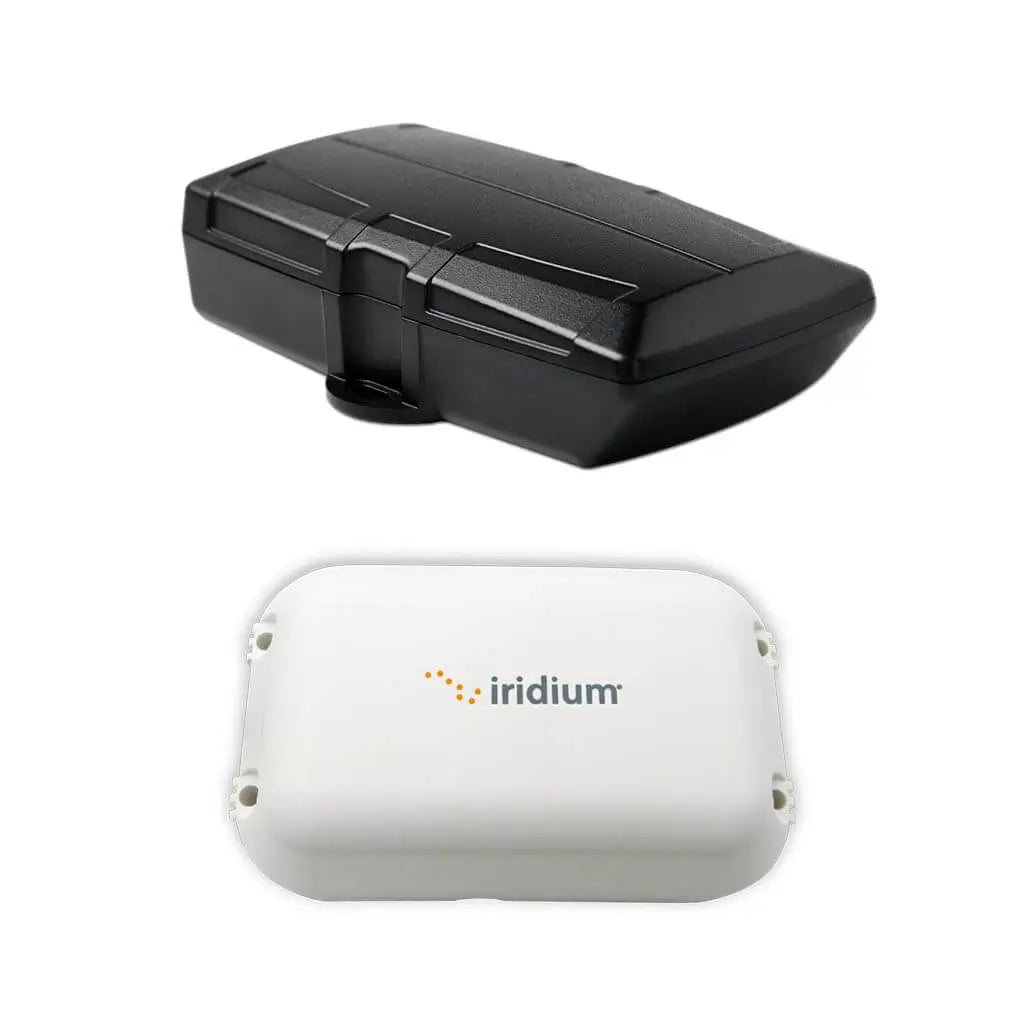

IRIDIUM Edge For out of coverage Tracking
The G120 can be connected to an Iridium Edge module via the G120 wiring harness. This enables a nearly plug and play option for out of cellular coverage tracking. When in coverage the G120 will cellular data, but if it leaves coverage it will fail over and upload records via the Iridium network at a less frequent rate. Complete records are logged and saved to the devices flash memory, and when it returns to coverage all will be uploaded - giving accurate, turn by turn trip replays and reporting.
The devices can be paired with duress pendants and receivers. The receiver can be connected to the digital inputs on the device, which when activated can trigger SOS alerts, making the G120 a powerful lone and remote worker solution.
Global Asset Management
Uses 4G mobile network when in coverage areas. (Iridium Edge Module available)
Fleet & Logistics
From complex fleet & logistics applications to cold chain management, and nautical applications.
The explorer is ideal to use for fleet tracking with reports for OHS security , tracking, geofencing, driver id and accelerometer data.
In the event of an accident, the accident detection system or black box will provide details of GPS and accelerometer data for a two hour window
Hardwired to permanent power for real-time tracking
Internal Backup Battery in case of loss of power or tampering
1 x Analog Input, 6 x Digital Inputs, 1 x Switched Ground Digital Output, 1 x Ignition Digital Input, Switched Power Out
RS-232 Interface to connect optional Iridium Edge® Module or interface with controllers and sensors
Bluetooth® 5.0 Gateway for tagged asset management and sensor monitoring
Configure iButton®, RFID readers and Wiegand Interface for Driver ID
Accident and rollover detection, speeding, harsh braking, and more
Cellular 2G or 4G LTE-M / NB-IoT
Vehicle and Fleet Tracking
Lone and Remote Workers
Out of cellular coverage locations
Cold Chain Management
Mining, Oil and Gas Rigs
RFID Driver ID Reader.(G120)
The Compact unit incorporates a 125kHZ RFID Reader which reads a variety of cards and keyfobs.
Simply plug into the device harness to install and works with a range programmable driver id key-fobs and cards.
5cm typical read range (can read through plastic / dashboard)
Plugs into the DMCAN peripheral plug on the KeepTrack G120 harness for easy installation
Includes a LED and buzzer for reminding drivers to swipe their card
Compatible with the EM4001 RFID standard

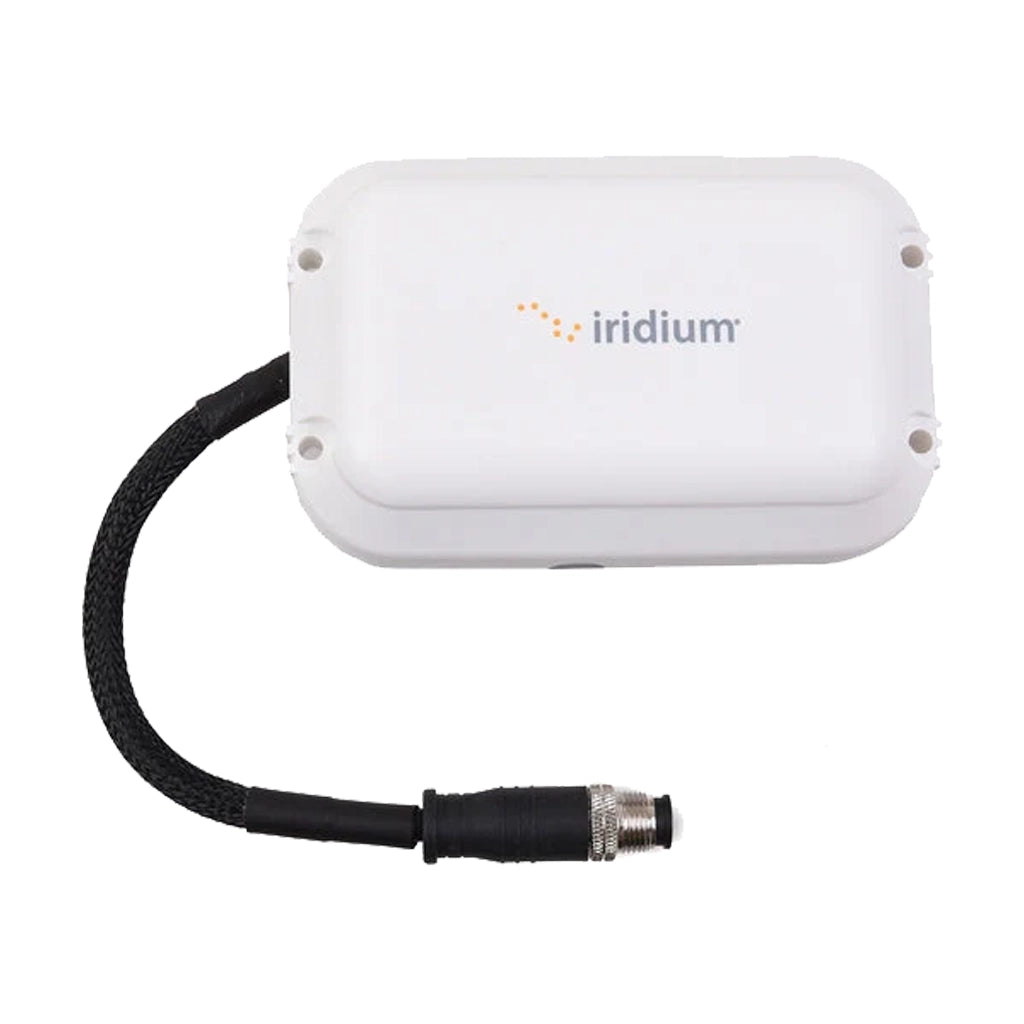

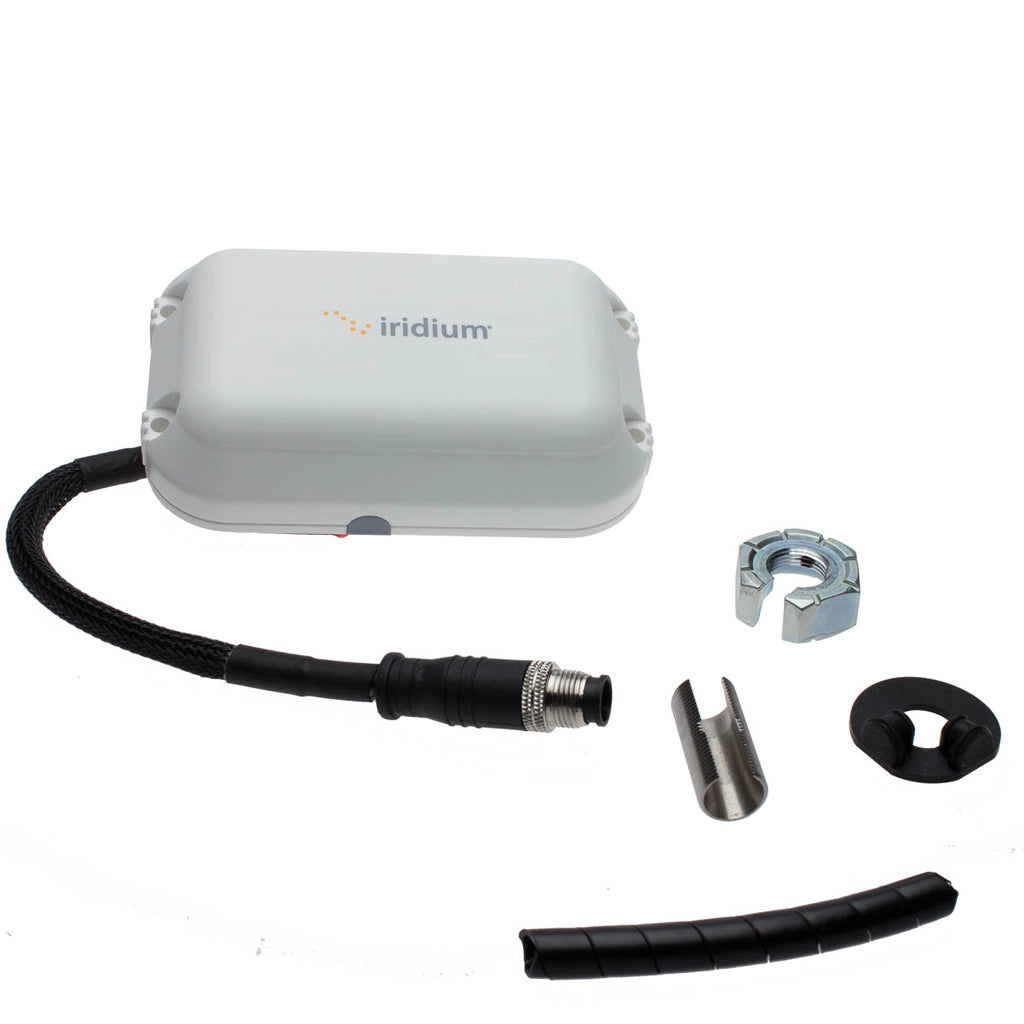

By leveraging your G120 with the Iridium Edge this creates a grate solution for fleet management, telematics, safety and other remote monitoring applications through Iridium Edge™, an off-the-shelf, reliable satellite communications device that complements existing cellular solutions to create dual-mode connectivity for the most remote and inaccessible areas of the world.
Fast time-to-market is a critical need in today’s evolving asset tracking and fleet management environment. Iridium Edge features an all-in-one Short Burst DataSM(SBDSM) modem and antenna, with power supply. The plug-and-play satellite IoT device can be easily paired with existing satellite and cellular solutions, without complicated integration or development requirements.
