ZOLEO Universal Mount Kit

1 review

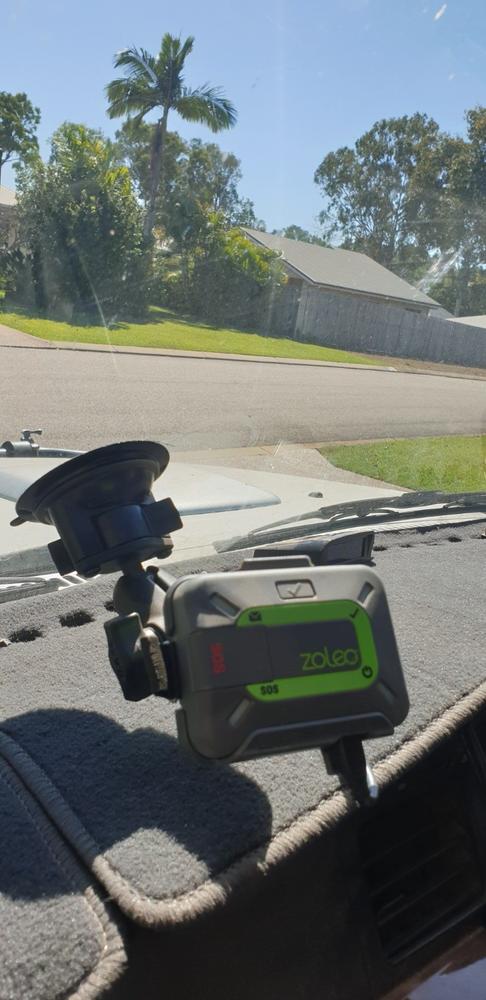

Ideal for securing the ZOLEO device on the windshield of a vehicle or vessel, or any window, and keeping it charged. This kit includes the complete Cradle Kit plus a USB car charger, RAM® Twist-Lock™ Suction Cup Mount for a strong hold on glass and non-porous plastic surfaces. The double socket arm makes it easy to adjust to the desired look-angle.

The Universal Mount Kit includes:

  • DC car charger
  • USB cable
  • Cradle
  • Camera mount
  • Strap infill
  • Belt clip
  • RAM® Twist-Lock™ Suction Cup mount
  • Installation guide


Additional Specs

RAM® Mount Components



RAM Twist-Lock Suction Cup Base with Ball

  • Suction Cup Dimension: 8.38 cm (3.3 in) in diameter
  • Weight: 118 g (4.16 oz)
  • Ball: B Size 2.54 cm (1 in) rubber ball

RAM Double Socket Arm

  • Dimensions: 9.47 cm (3.73 in)
  • Weight: 140.6 g (4.96 oz)

RAM Ball Adapter with ¼"-20 Threaded Stud
for Action Cameras

  • Dimension: 63.5 mm (2.5 in) in diameter
  • Weight: 72.57 g (2.56 oz)
  • Stud: ¼”-20 threaded steel stud
  • Ball: B Size 2.54 cm (1 in) rubber ball

DC Car Charger

  • Single USB port for use with the included USB to Micro-USB cable
  • Input Voltage: 12-24 V
  • Output Voltage: 5 V
  • Max Current (A): 2.5 A

USB Cable

  • 1.2 m (3.9 ft) (USB to Micro-USB)



ZOLEO Cradle Kit Components (included)



Main Cradle

Secures and protects your ZOLEO device and includes a locking tab to enable easy installation or removal of all included clips/inserts.

  • Dimension: 74.5 x 95.0 x 27.8 mm (2.93 x 3.74 x 1.09 in)
  • Weight: 3.0 g (0.10 oz)
  • Colour: Grey

Belt Clip Insert

Secures your ZOLEO device to be worn on a belt.

  • Weight: 2.0 g (0.07 oz)
  • Colour: Green

Strap Mount Insert

Secures your ZOLEO device flat against a backpack or other installations using a strap or tether. Simply slip the strap through the insert.

  • Fits straps up to: 25 mm (1 in)
  • Weight: 1.0 g (0.03 oz)
  • Colour: Green

Camera Mount Insert

Secures your ZOLEO device to any universal camera mount. Ideal for use with other RAM mounts and other accessories with a camera mount.

  • Weight: 1.5 g (0.05 oz)
  • Thread Type: ¼"-20 UNC
  • Colour: Green
Customer Reviews
2.0 Based on 1 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
    IS
    08/08/2021
    Ian S.
    Australia Australia
    I recommend this product
    Zoleo is great but mount sucks

    This mount does not stay in place in a 4wd even on lightly corrugated roads. It should be much better for the exjorbitant price. Ok on bitumen roads but the why have a Zoleo? Seriously guys, you need to talk to the manufacturers about this product.

    Keep Track GPS ZOLEO Universal Mount Kit Review
    10/08/2021
    Keep Track GPS

    Hi Ian thanks for the feed back on the ZOLEO Ram Mount. Sorry to hear about your experience. Ram Mounts are renowned for there quality products world wide. I have passed your feed back on to ZOLEO regarding your experience. Regards The Team @ Keep Track GPS
