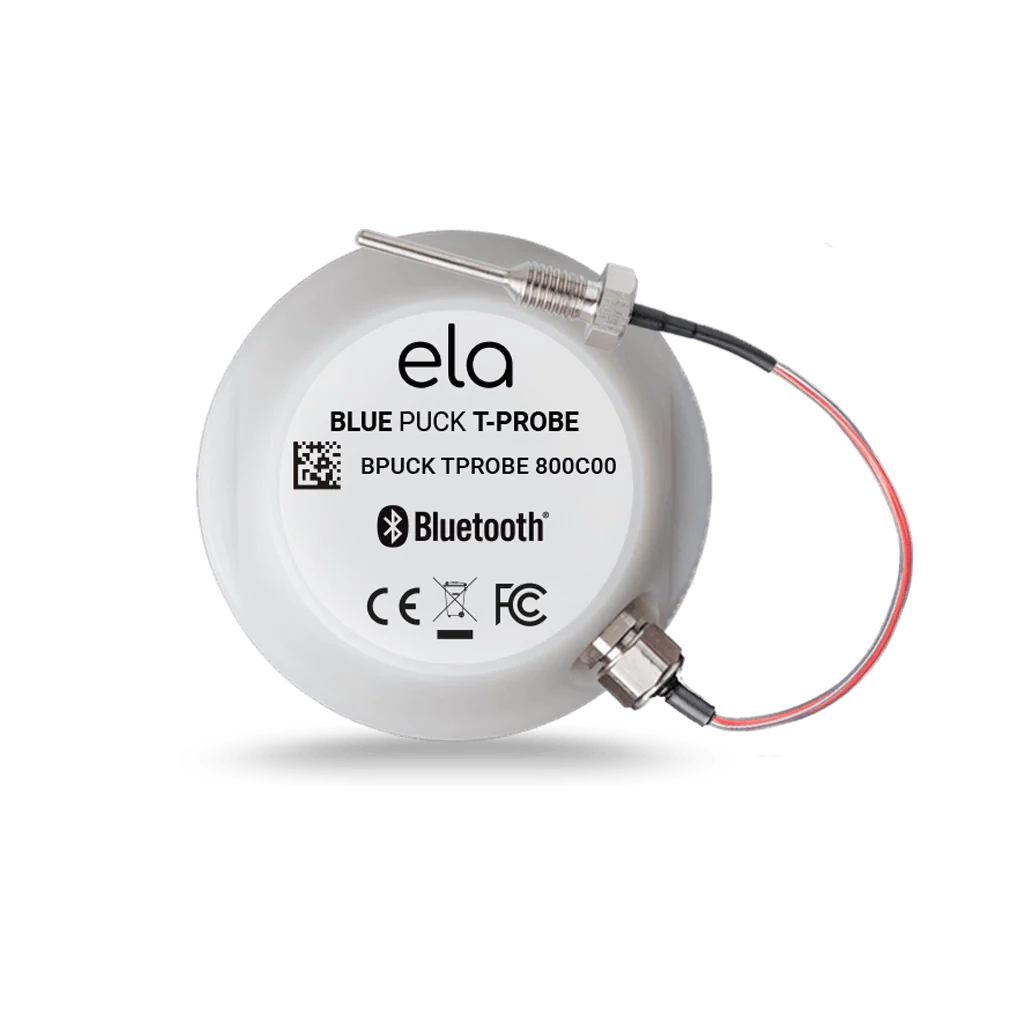

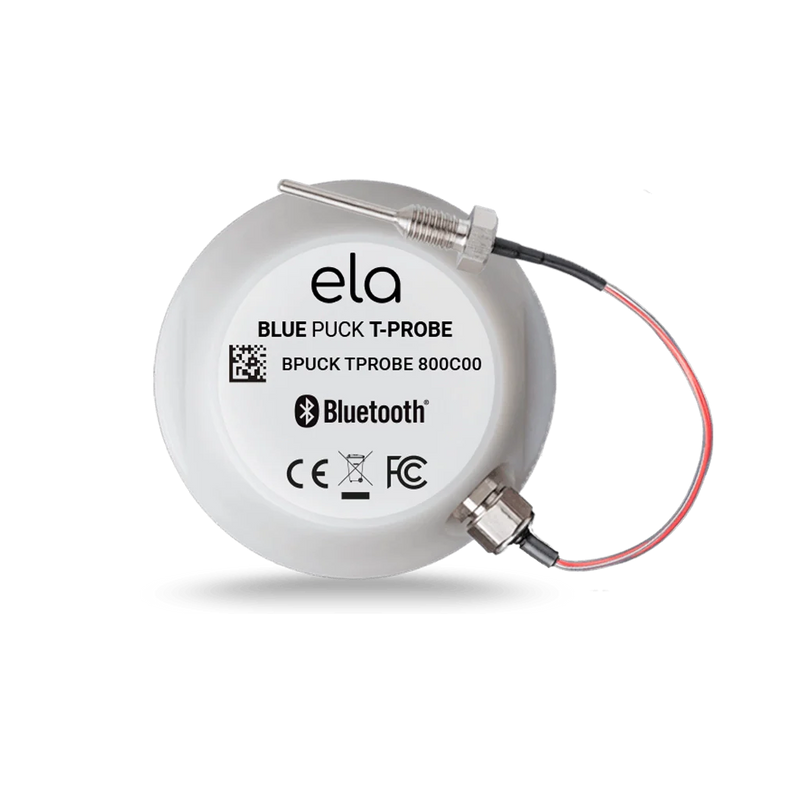

ELA Blue Puck T-Probe Bluetooth Temperature Sensor

  • Bluetooth Low Energy Temperature Sensor

    Refrigerated Transport Temperature Monitoring

    Equipped with Bluetooth Low Energy technology, the ELA Blue Puck T-PROBE temperature sensor is waterproof and robust. This sensor has an external probe that can work in harsh industrial settings and is completely self-sufficient. It can also be used to solve the problem of tracking pharmaceutical products through the cold chain. This temperature recorder offers an extra-wide measuring range from -80°C to +200°C and perfectly meets the standards for transport and storage of temperature-sensitive goods.

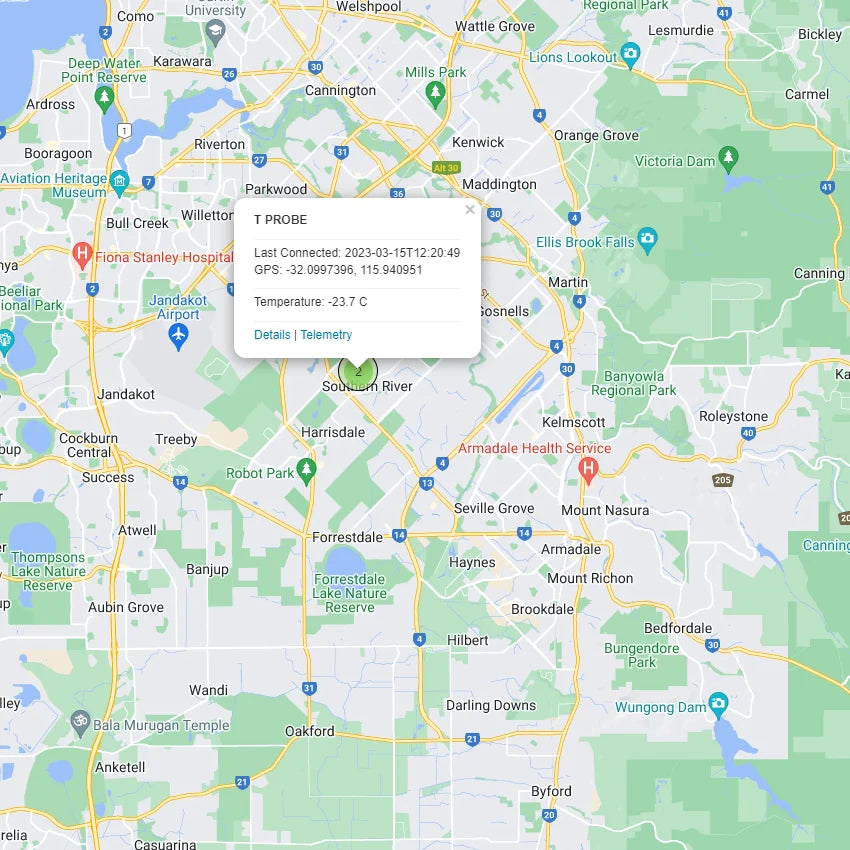

    Remote Temperature Monitoring

    Bluetooth wireless temperature sensors can be used to monitor and secure the transportation of temperature-sensitive items. Transporters must equip themselves with a temperature control system to improve the traceability of the cold chain and ensure compliance with current standards.

  • Specifications

    Specifications Value
    Frequency 2,4 GHz - Bluetooth Low Energy 4.0/4.2
    Output power Up to +4 dBm (configurable
    Range Up to 500 meters open field (+4dBm)
    Transmission period 2 advertising periods can be configured (value between 0,1 and 86400 seconds).
    Transition from one to another according to configurable sensor threshold.
    Radio frame format ELA ID (15 bytes identifier)
    ELA T (15 bytes identifier + 2 bytes Temperature (in 0.01°C)
    Settings and configuration Interface/protocol : NFC (Type 2)
    Connected mode Datalogger download /Battery level command
    Sensors performance Range : -80 to +200 °C
    Resolution : 0.1 °C
    Accuracy :
    ±0.5 °C typical (-30°C to +60°C)
    ±1°C typical (-40°C to +150°C)
    ±2°C typical (-80°C to +200°C)
    Configurable 3-points calibration coefficients
    Factory Clibration
    COFRAC accredited calibration as an option
    Power supply 3 VDC - Internal lithium battery
    Battery life Up to 14years*
    Battery level Low battery warning in advertising frames (<15%)
    Dimensions PUCK housing : Ø 57 mm base - height 20 mm
    Probe : Ø 3 mm – Lenght 28 mm – M8
    Cable : 1 m
    Weight 63 g
    Materials PUCK housing : DELRIN (POM C) Compatible with food products (90/128/EEC)
    Probe : Stainless steel
    Cable : Teflon (1m)
    Waterproof grade PUCK housing : IP 65
    Probe : IP68
    Operating /storage temperature PUCK housing : -40°C to +85°C
    Probe : -80°C – +200°C
    Tag support Holder + double-sided adhesive: PUCK HOLDER STICKER (ACIOM118B)
    Holder only: PUCK HOLDER (ACIOM117B)
    Double-sided adhesive only: PUCK STICKER (ACIOM188) 3M PT1100 - Ø 55mm – Thickness: 1,1mm
  • Blue PUCK T Probe Fact Sheet
