Keep Track Barra Edge Battery-Powered GPS Tracker

Important: All trackers need a plan to work. Please choose your plan below.

  • Battery-Powered, GPS Tracker, Low-Cost Indoor and Outdoor Tracking

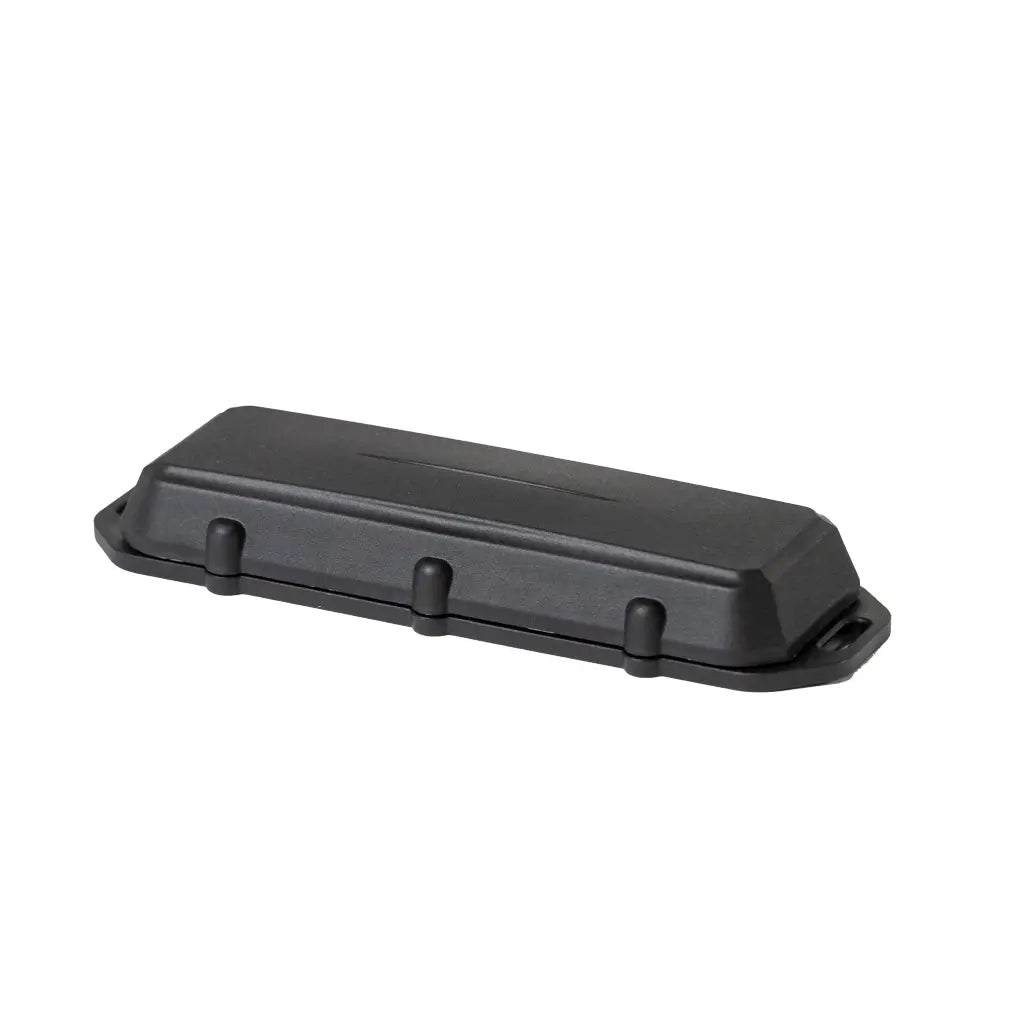

    Barra Edge GPS Tracker

    The Barra Edge GPS is a high-precision, compact, battery-powered, weatherproof cellular GPS tracker for wire-free installation. Securing the device to your assets is easy. Portability is the key factor due to the size and flexibility of moving from one asset to another. The Keep Track Barra Edge GPS is a low-cost battery-powered indoor and outdoor asset tracker for LTE-M/NB-IoT networks.

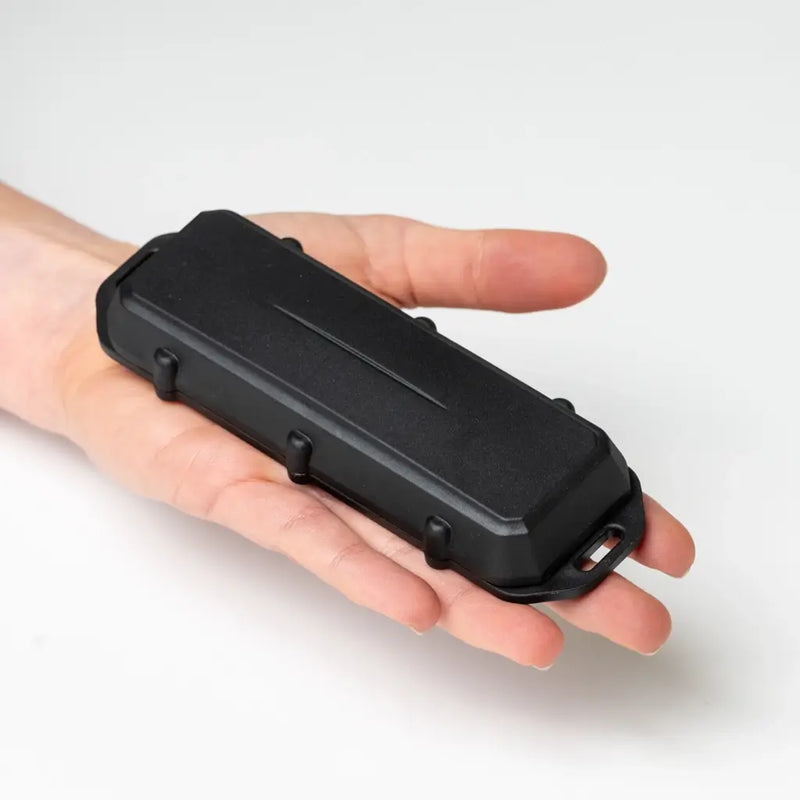

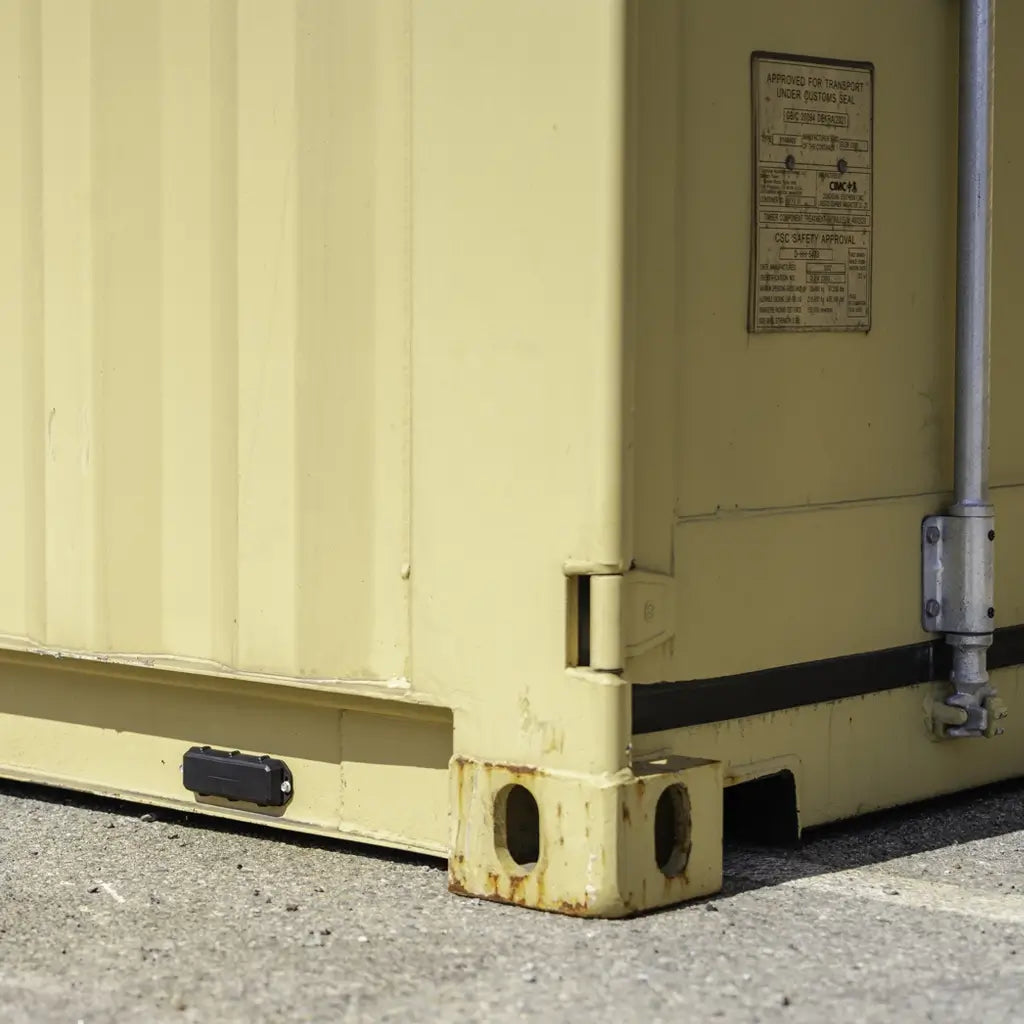

    The Barra Edge battery-powered GPS is easily concealable, with multiple installation options for covertly securing the device to assets with magnets, screws, bolts, cable ties, etc.

    Low-Cost Battery-Powered GPS Tracker

    Long Battery life
    Once daily location updates: 8+ years
    Movement-based location updates:  years
    Hourly location updates:  years



    Barra Edge Features

    • Indoor/Outdoor: GNSS, Wi-Fi AP MAC Address Scanning, and Cell Tower location for indoor/outdoor asset management
    • Magnetic Switch for Device Activation and Tamper Detection
    • Slim Form Factor and Ultra-Rugged IP68, IK07 housing
    • Housing size: 149 x 51 x 21 mm
    • Deploy-Once battery life provides 8+ years with 2 x AA Energizer Lithium Batteries
    • 24-month warranty
    • LTE-M (Cat-M1)/NB-IoT Connectivity

    Barra Edge Battery Life Estimates

    1 X Daily Location Update 1 X Hourly Location Updates Movement-Based Location Updates
    10 + Years 3 +Years 5 + Years



    *Several factors, including temperature, installation location and orientation of the device, the frequency of location updates, network coverage, sensor integrations, peripherals accelerometer settings influence battery life estimates,


    Applications For GPS Tracking Devices

    • Tracking Low-to-mid-value
    • Implement on resources where the cost of current solutions is prohibitive.
    • low-profile and form factor
    • Supply Chain
    • Logistics
    • Pallet Tracking
    • Cargo Tracking
    • Trolley Tracking
    • Equipment Tracking
    • Tool Tracking
    • Rental Cars
    • Pumps, Generators and Hire Equipment
    • Agricultural Equipment


    Download The Keep Track GPS Telematics App for IOS or Android!

    gps tracker app for caravans on the app store     keep track telematics gps tracker for car App on Google Play
  • Barra Edge Specifications


    CONNECTIVITY

    Cellular Module Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands
    Supported LTE bands:
    LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66
    NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
    SIM Size & Access Internal Nano 4FF SIM

    Location

    Chipset Cloud-Based Solver
    Environment Indoor/Outdoor
    GNSS Scanning Concurrent GPS/BeiDou
    Wi-Fi Location Scanning Indoor asset location using Wi-Fi access point scanning
    Cell Tower Location Cell tower fallback for positioning when there is no GNSS or Wi-Fi signal
    Cloud-Based Solver Asset location is calculated in Digital Matter’s Location Engine
    *Location Accuracy ~5m-80m with GNSS scanning in open areas
    ~10m-100m with Wi-Fi in urban areas
    ~250m-1km Cell Tower Geolocation - dependent on the number of nearby towers
    Results vary depending on real world conditions
    Low Noise Amplifier GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA), allowing operation where other units fail
    GNSS Assistance GNSS almanac data for greater sensitivity and position accuracy

    *Results vary based on real world conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.

    Power

    Input Voltage 2.2 - 3.6V
    Sleep Current <10uA*
    *Average current in lowest power configuration

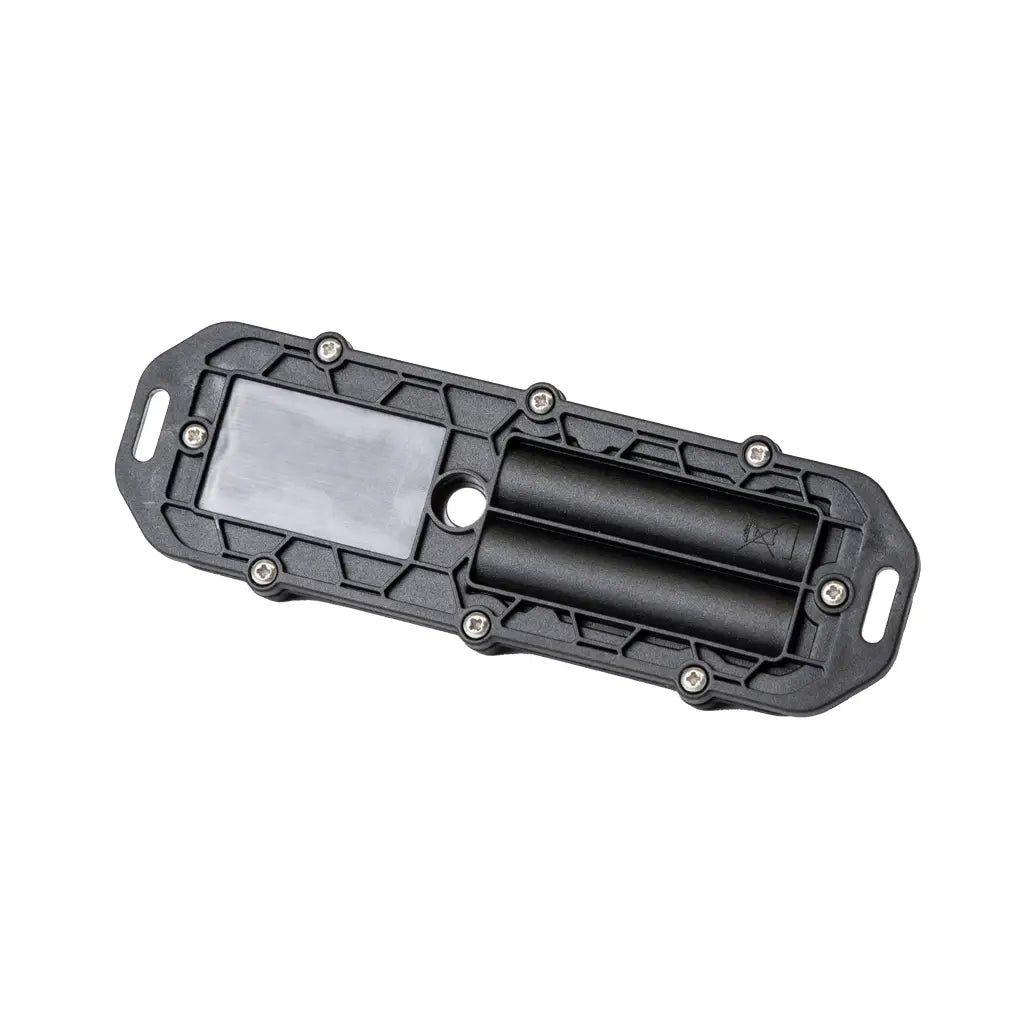

    Batteries

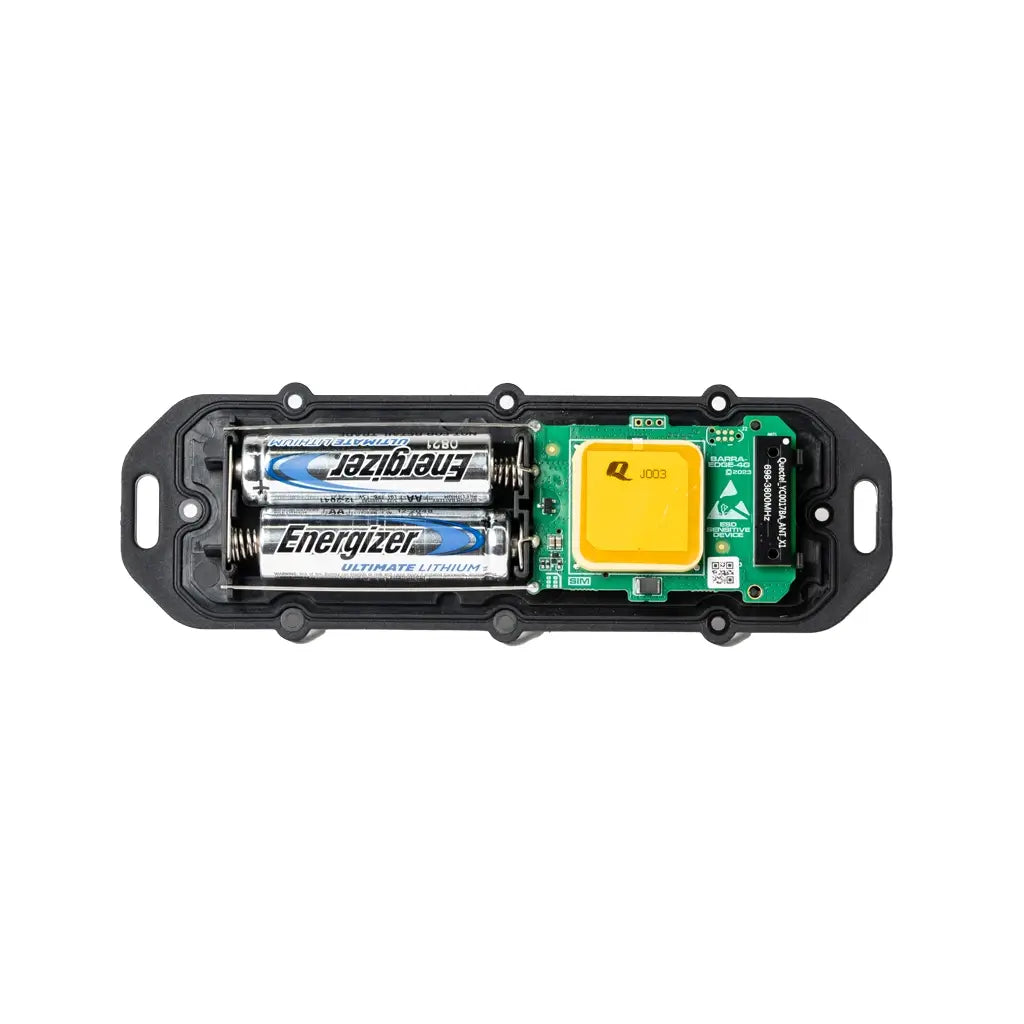

    User-Replaceable Batteries 2 x AA. Batteries are not included.
    Supported Battery Types Alkaline
    Lithium (LiFeS2) – recommended for best performance
    *Please dispose of Lithium batteries in a safe and responsible manner
    *Battery Life Estimates Once Daily location updates – 10 years
    **Movement-Based location updates – 5 years
    Hourly location updates – 3 years

    * Battery life estimates are influenced by several factors, including temperature, installation and orientation of the device, the frequency of location updates, network coverage, sensor integrations, peripherals, and accelerometer settings.
    ** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion.

    Mechanics/Design>

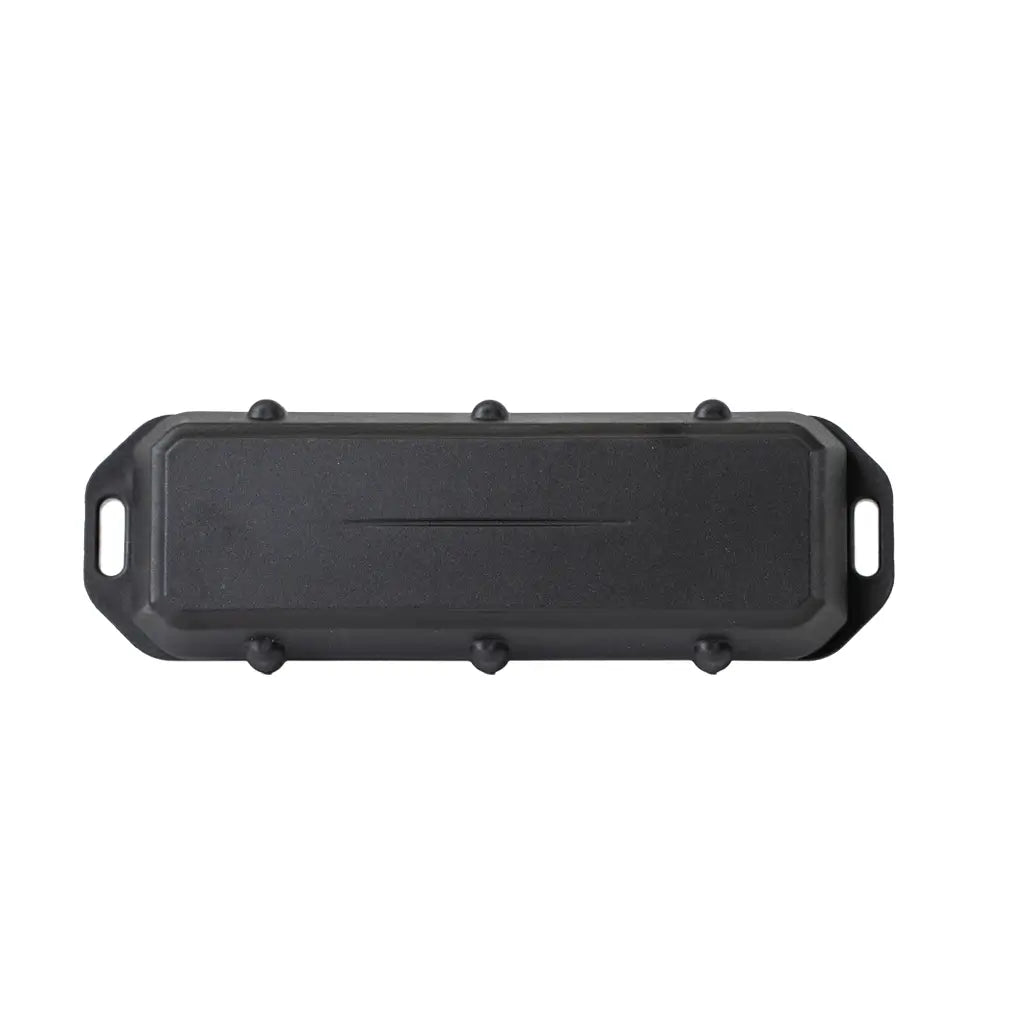

    Dimensions 149 x 51 x 21 mm
    IP/IK Rating Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the Barra can withstand impact, fine dust, and brief submersion.
    Installation Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.
    Magnetic Switch Magnetic switch enables quick activation and tamper detection
    Operating Temperature -30°C to +60°C
    Cellular Antenna Internal
    GPS Antenna Internal
    Wi-Fi Antenna Internal
    3-Axis Accelerometer 3-Axis accelerometer to detect Movement and High-G events
    Diagnostic LED Diagnostic LED indicates the operation status
    Flash Memory Internal flash memory stores approximately 1400 records if the device is out of cellular coverage.
    Speed and Heading Scanning technology used on the Barra Edge does not return speed and heading.
    Onboard Temperature The device reports internal temperature, which provides an indication of ambient temperature.

    Smarts

    Adaptive Tracking Configure parameters to send updates based on set time intervals or when movement occurs.
    Adaptive tracking technology detects when the device is moving and increases the update rate,
    providing details when you need them while conserving battery energy when stationary.
    Battery Life Monitoring ‘Battery Low’ and ‘Battery Critical’ alert levels
    Geofence Alerts The server can use device location to create geofences and alerts if an asset enters or leaves designated locations
    Impact Detection configure impact-detection alerts when a user-defined threshold exceeds g-forces>
    Magnetic Activation A magnetic switch can be used to activate the unit – meaning SIM cards and batteries can be pre-installed, simplifying deployment.
    Rotation Counting Keeps a count of the number of rotations of the device about the Z-axis
    Run Hour Monitoring Capture run hours based on movement to understand and optimize asset utilisation
    Sleep Mode Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage
    Tamper Detection Magnetic switch provides an alert if the device is removed from your asset
    Theft Recovery Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval
    Tip Detection Define a range of angles that constitutes a ‘tipped’ state and configure alerts

    Security Data

    Data Security Military-level AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

    Manufacturer's Warranty

    Manufacturer’s Warranty Two-year manufacturer’s warranty.
