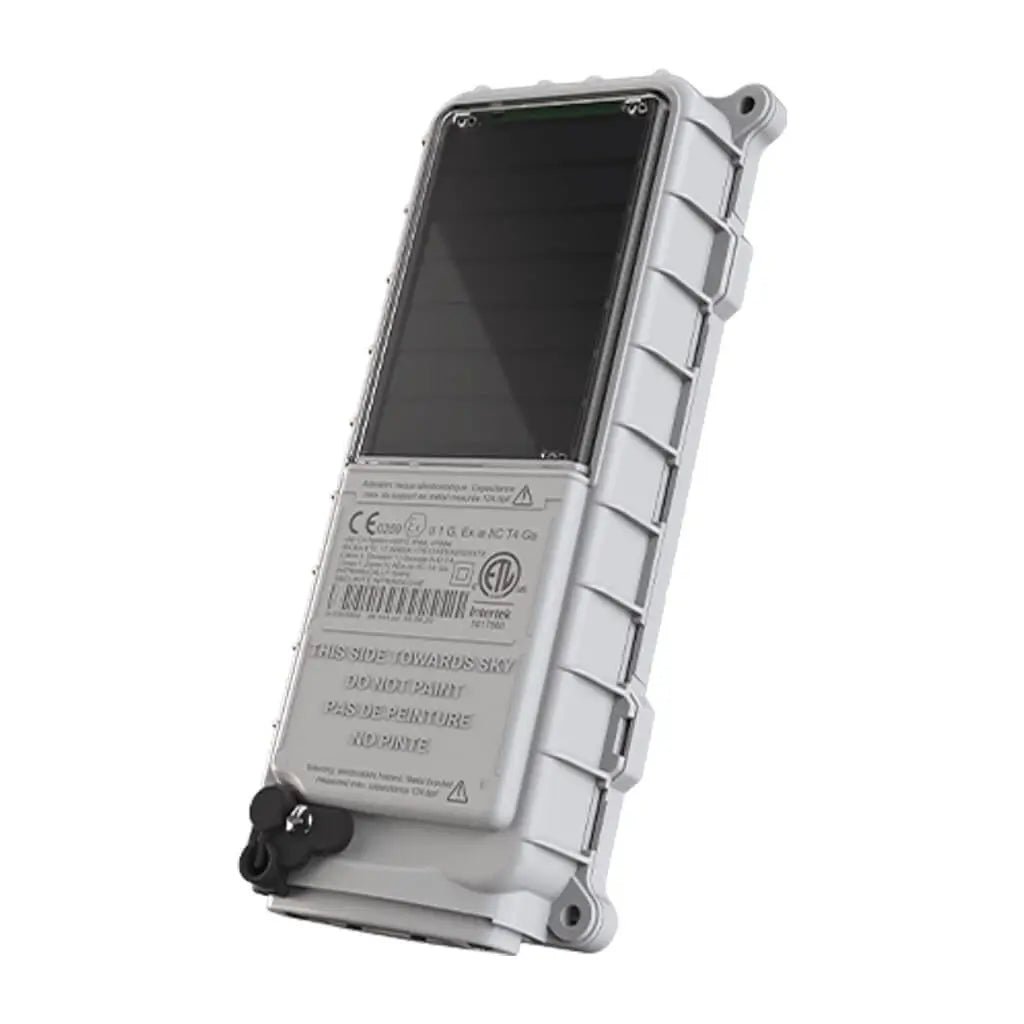

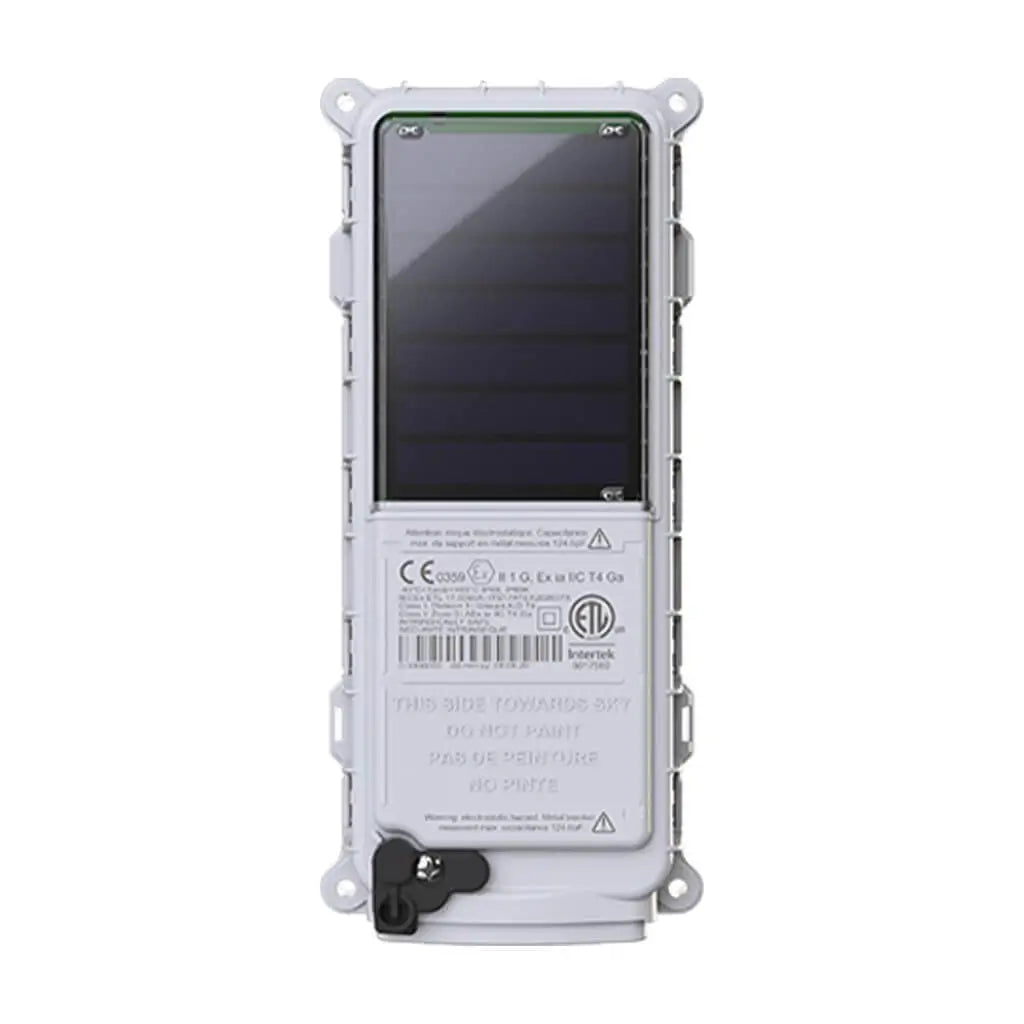

SmartOne Solar Satellite GPS Tracker

  • Globalstar SmartOne Solar-Powered GPS Satellite Tracker

    By employing SmartOne Solar, your company can streamline M2M operations and monitor and manage remote assets.

    SmartOne Solar is the next-generation GPS tracker in Globalstar's industry-acclaimed SmartOne satellite tracker product line. Operating on one of the world's most modern and fastest satellite networks and powered by the sun, this IoT device provides excellent remote monitoring and tracking capabilities.

    SmartOne Solar's NiMH rechargeable batteries deliver up to 10 years of life, drastically reducing maintenance time and the cost of labour and parts. They also let users intelligently configure reporting times and intervals for custom information delivery.

    It has also achieved unparalleled safety and device certifications, including ATEX Class I Zone 0: Division 1, CSA22.2, UL60079-0, IP69K, HERO certifications, and others, to meet the needs of every application. Let SmartOne Solar streamline your M2M operations today.

    SmartOne Solar allows you to proactively manage remote assets through automated data collection and critical monitoring.

    • A solar-powered device with up to 8 years of battery life and no requirement for external power or antennas
    • Control costs with affordable and scalable satellite service plans
    • Improves operational productivity through reliable remote asset performance monitoring, safety and compliance, smart metering, and data visibility
    • Trouble-free management for personnel responsible for assets with autonomous and efficient device operation
    • Additional options for control over message delivery with geofencing capabilities



    SmartOne Solar Asset Tracker includes:

    • 12 different reporting times
    • Interval or 24-hour operation mode
    • Alternate reporting schedules
    • Low battery message
    • Motion Sensor/Vibration parameter and scheduling
    • Contact closure parameters
    • Diagnostic messages
    • Include Speed and Heading data in reported motion messages.

    Features

    • Solar-powered with up to 10 years of battery life
    • Intrinsically Safe
    • Bluetooth interface for easy configuration
    • GPS Location reporting in 4 modes
    • Geo-fencing with configurable range
    • Stationary or in-motion reporting
    • Reduced messaging & theft recovery modes
    • Receives and transmits data from external sensors
    • Two dry-contact or wetted-voltage inputs are available to manage engine run time, tank level or various alarm inputs.
    • Quick and easy installation requires no harnesses, external power, or external antennas.
  • Specifications

    Specifications Value
    Dimensions 8.26 x 17.78 x 2.86cm
    Device Weight 385 g
    Device Weight with optional mounting bracket 1150 g
    Device Dimensions (w/ brackets) null
    Operating Temperature -40° to +85° C
    Input Voltage 10 TO 48v DC
    Battery Type Built-in Rechargeable NiMH Batteries (non-replaceable) (up to 10 years run-time)
    Satellite Type Global LEO Satellite Operation
    Certifications FCC, ISED, CE
    AUS/NZ, ANATEL, INMETRO CERTIFICATE, LMP 19.0127 X
    PENDING: JQA (Japan), IFT, INDONESIA
    Intrinsic Safety Certifications - ATEX/IECEx II 1 G,Ex ia IIC T4 Ga
    For international Zone 0 applications, HERO
    Standards - North America cETLus:
    - Class I, Division 1, Groups A-D, T4
    - Class I, Zone 0, AEx ia IIC T4 Ga
    WEEE Compliant
    - GMPCS-MoU
    - IP68/69K
    -MIL-STD-810G for:
    - Immersion
    - Impact resistance
    - Salt Fog
    - Acidic Atmosphere
    - Humidity
    - Vibration
    *Note The device is not intrinsically safe when any cable is connected.
    **Note The unit is certified intrinsically safe for hazardous environments over the temperature range of -40° C to +65° C
  • Accessories

    • Globalstar USB Configuration Cable (Part No. 2030-0261-01)*
    • Stainless Steel Mounting Bracket (Part No. 7000-0278-01)
    •  Globalstar Universal Input Cable (Part No. 2030-0265-04)*
    • Bluetooth Dongle (Part No. 1950-0105-01)
  • Download the SmartOne Solar Data Sheet
