SmartOne Solar Universal Input Cable | GPS Tracker Accessory
$114.00

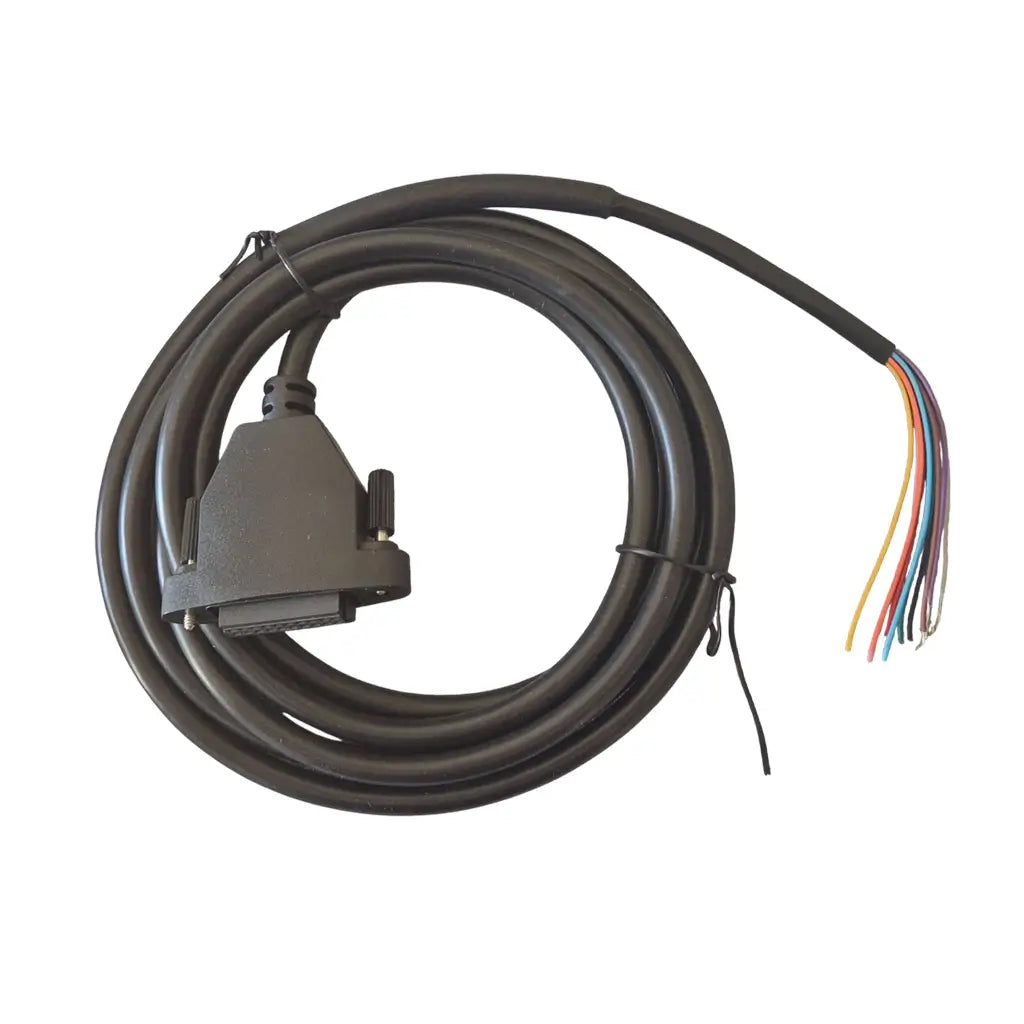

SmartOne Solar Universal Cable

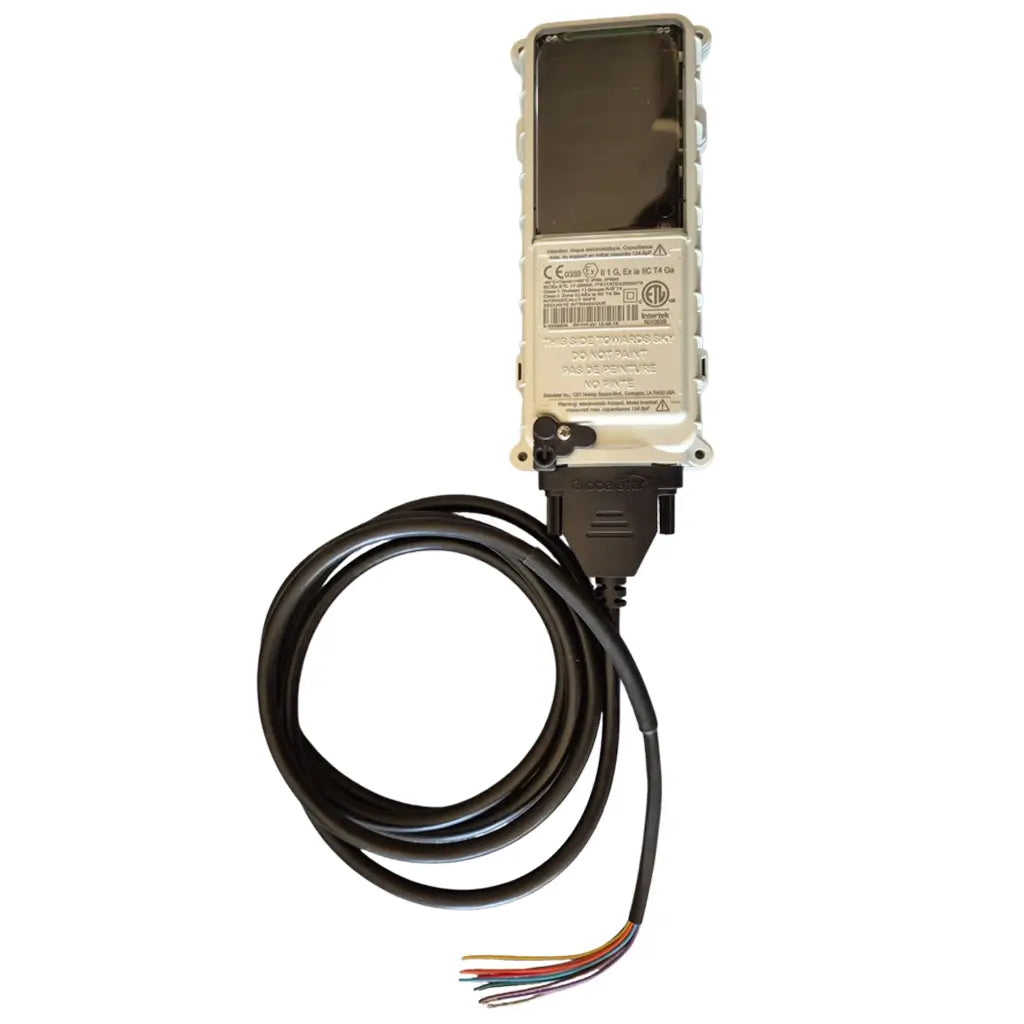

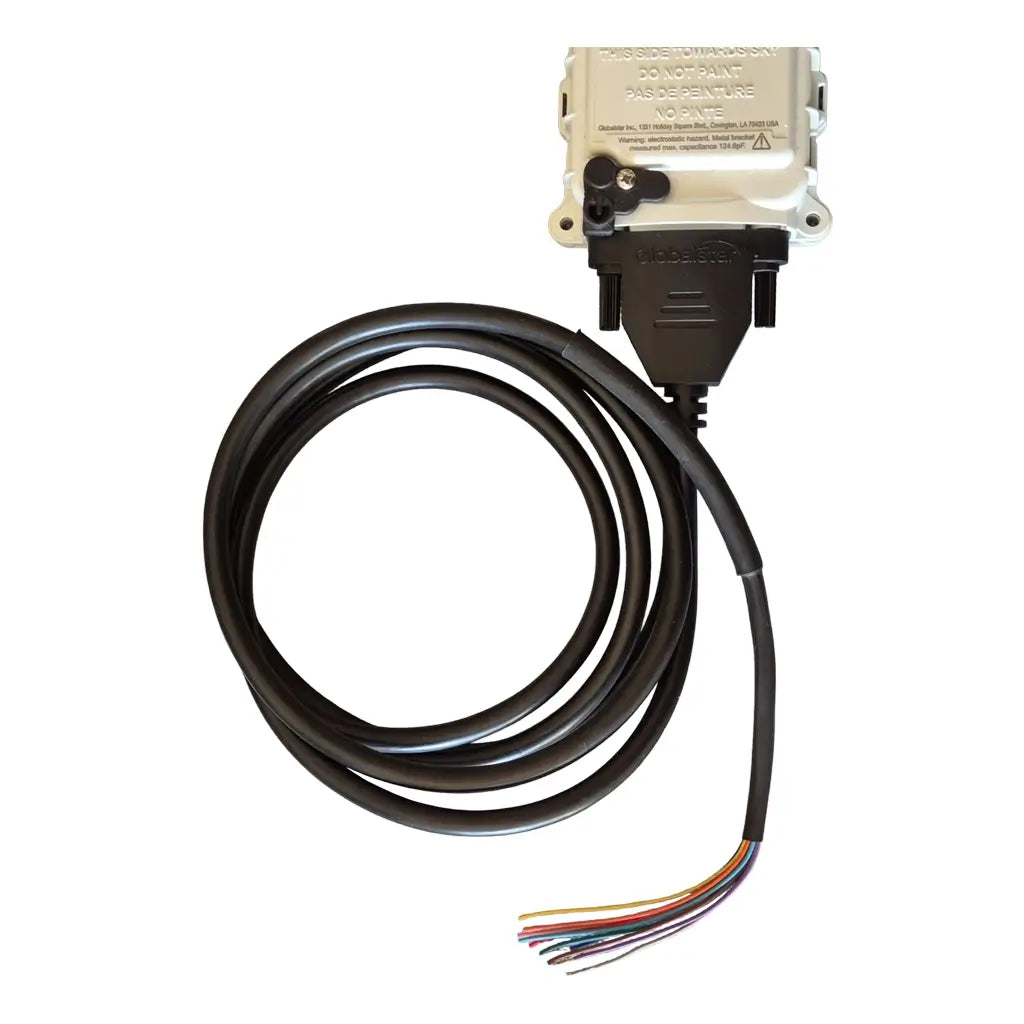

Expand the functionality of your SmartOne Solar GPS tracker with this universal input cable. Designed specifically for the SmartOne Solar, this cable enables you to connect external sensors, switches, or triggers, such as door open/close alerts, engine runtime signals, or motion-based inputs. It's ideal for advanced asset monitoring in mining, construction, transport, and remote operations.
With plug-and-play installation, this rugged cable ensures reliable data input for smarter, real-time event tracking across Australia.
SmartOne Solar External Input Cable
INSTRUCTIONS
- This cable is designed to work only with the SmartOne Solar product. Do not use
With any other SmartOne product. - This cable is designed to work with 3V logic only. Do not use with 5V logic
devices. - Be certain that unused wires do not short to each other.
- All ground wires are common; therefore, any ground can be used with any function.
| Connector PIN # | Color | Function |
|---|---|---|
| 2 | Green | Ground |
| 3 | Brown | Setup (Handshake from Serial Device) |
| 4 | Red | RX (connect to Serial Device TX) |
| 5 | Orange | TX (connect to Serial Device RX) |
| 8 | Light Blue | Dry Contact 2 |
| 9 | White | Dry Contact 1 |
| 11 | Yellow | Soft Power Down (Normally Open) |
| 12 | Blue | Ground |
| 19 | Violet | Line Power + (positive) |
| 20 | Gray |
Globalstar Universal Input Cable (Part No. 2030-0265-04)
